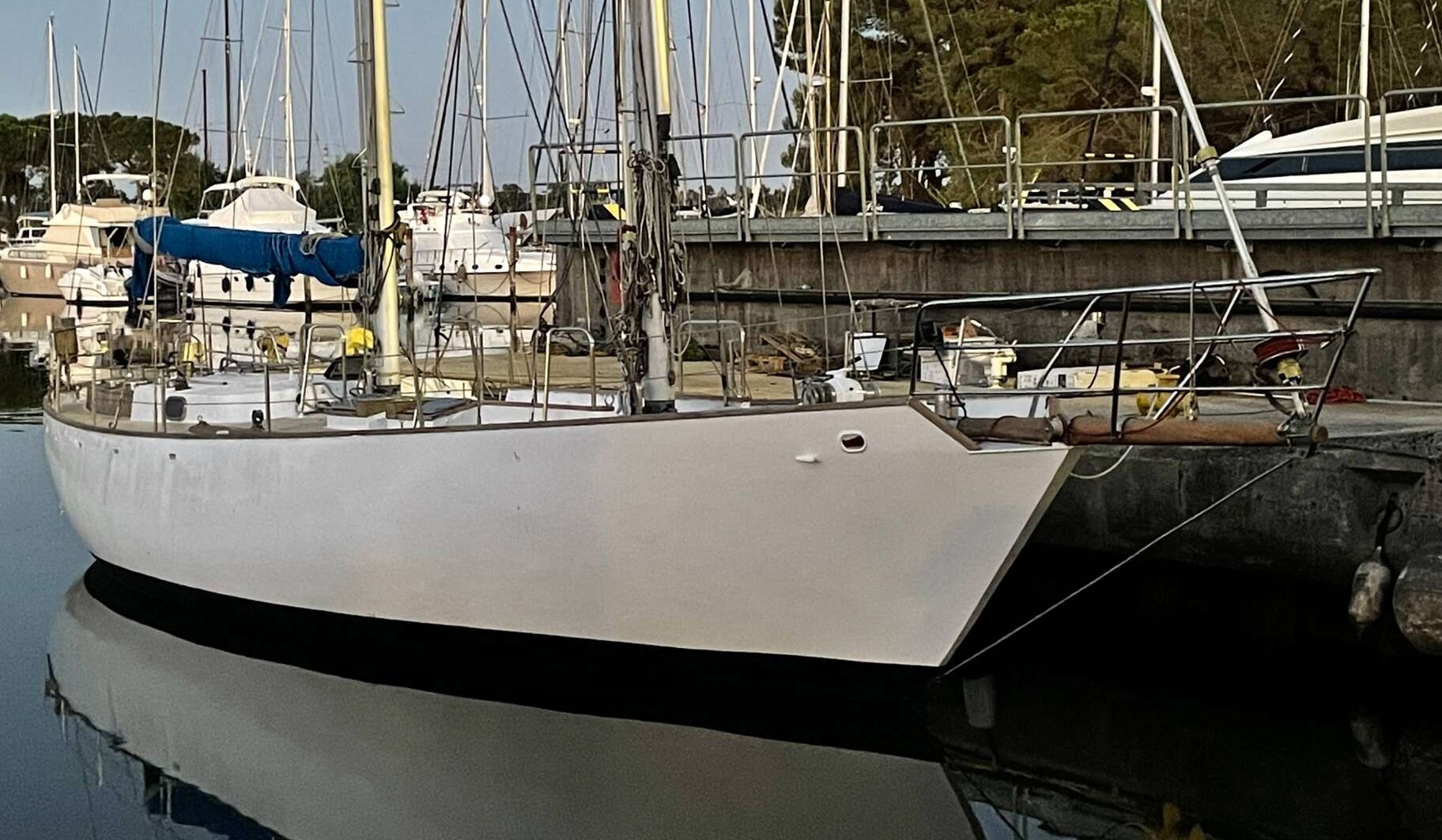

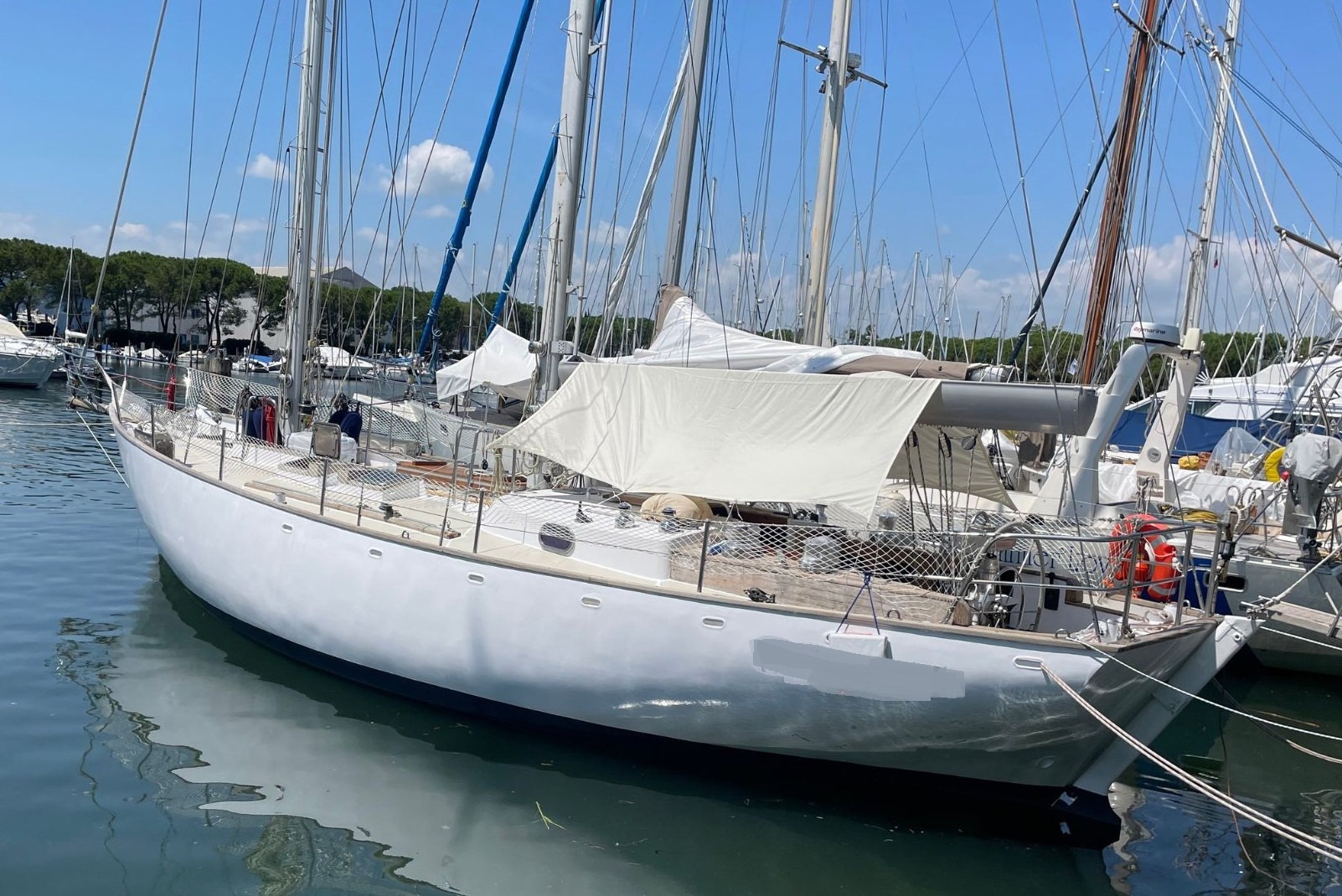

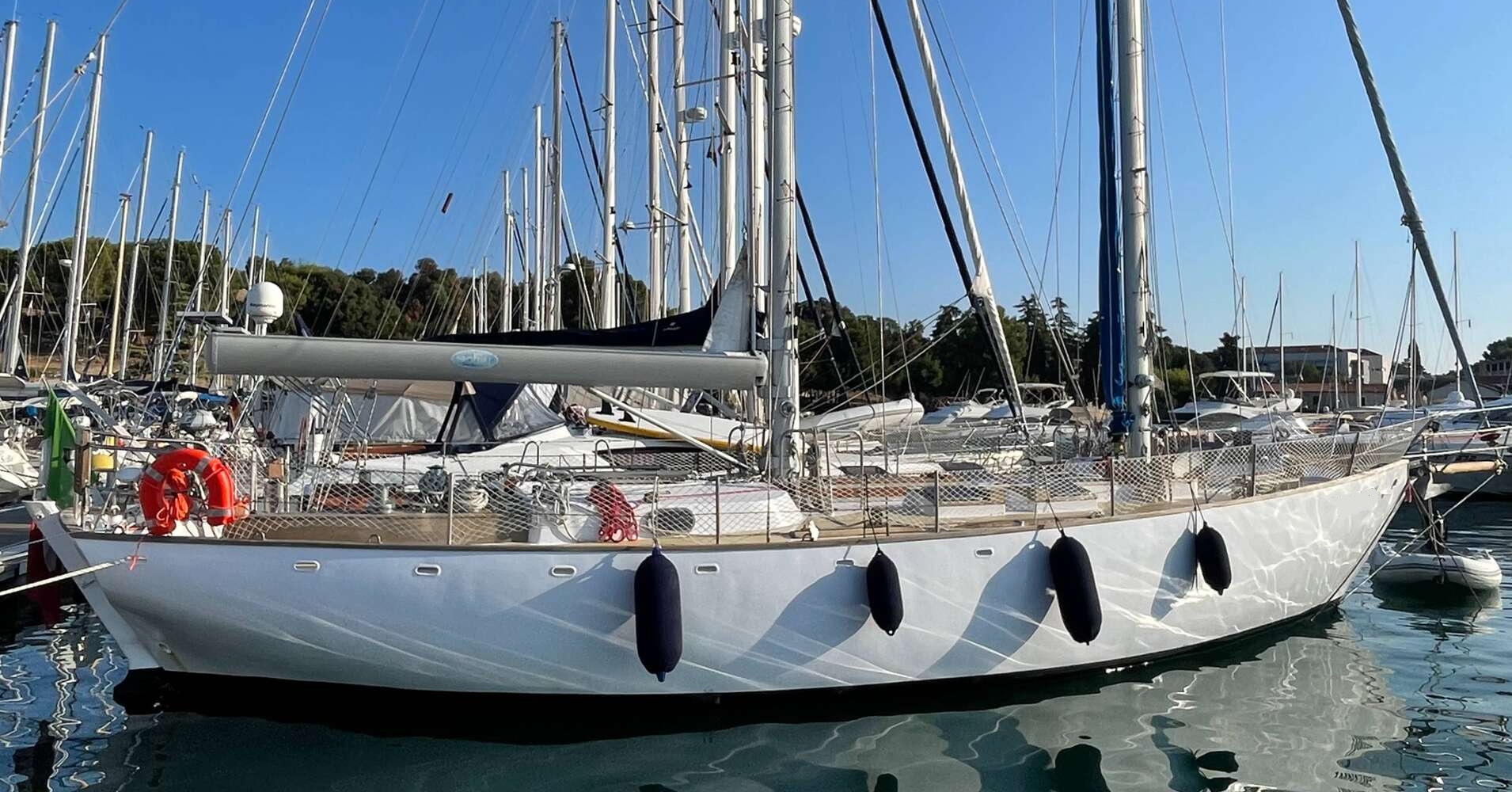

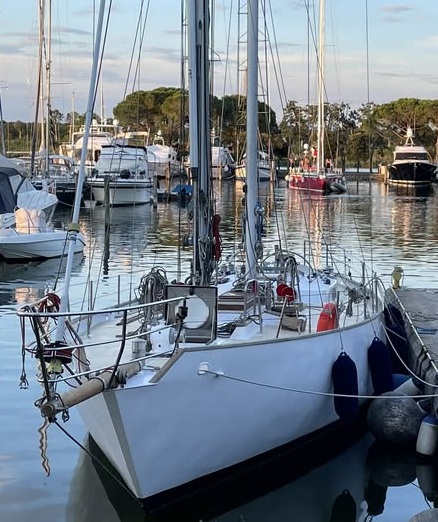

Great restoration 2021-2023 done and hull sanded: ready for 2026 season. Schooner is easy to handle.
Year 1983
Designer Carlo Sciarrelli n° 72
Builder San Marco Venezia
Hull steel
Loa 14.02 + bowsprit
Beam 4.20 m + bowsprit 16,4 m
Max Draft 2.20 m
Min draft 1,50
Headroom 2,10 m
SA 299 sm
Engine Fiat Aifo – 8041 M – 86 hp
Centreboard
Interior: 4 separate cabins + ward berth
Flag ITA – Vat paid
• Designer Carlo Sciarrelli
• Displacement (t)23,9
• Hull material steel
• Hull colour white 2023 painted
• Hull thickness (mm)4-5
• Hull shaper ound-bilged
• Keel type lifting keel

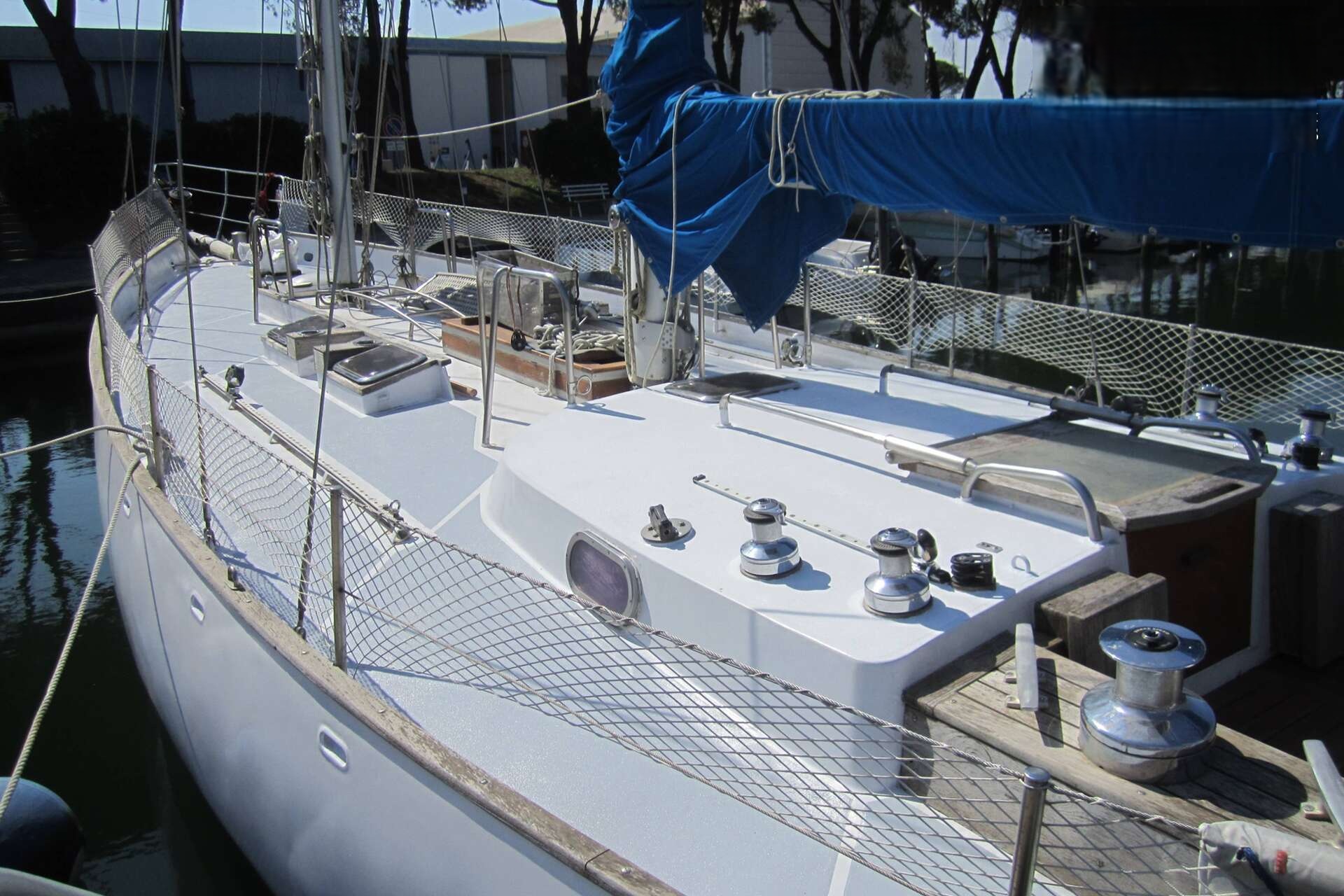

• Superstructure material steel
• Rubbing strake steel
• Deck material steel

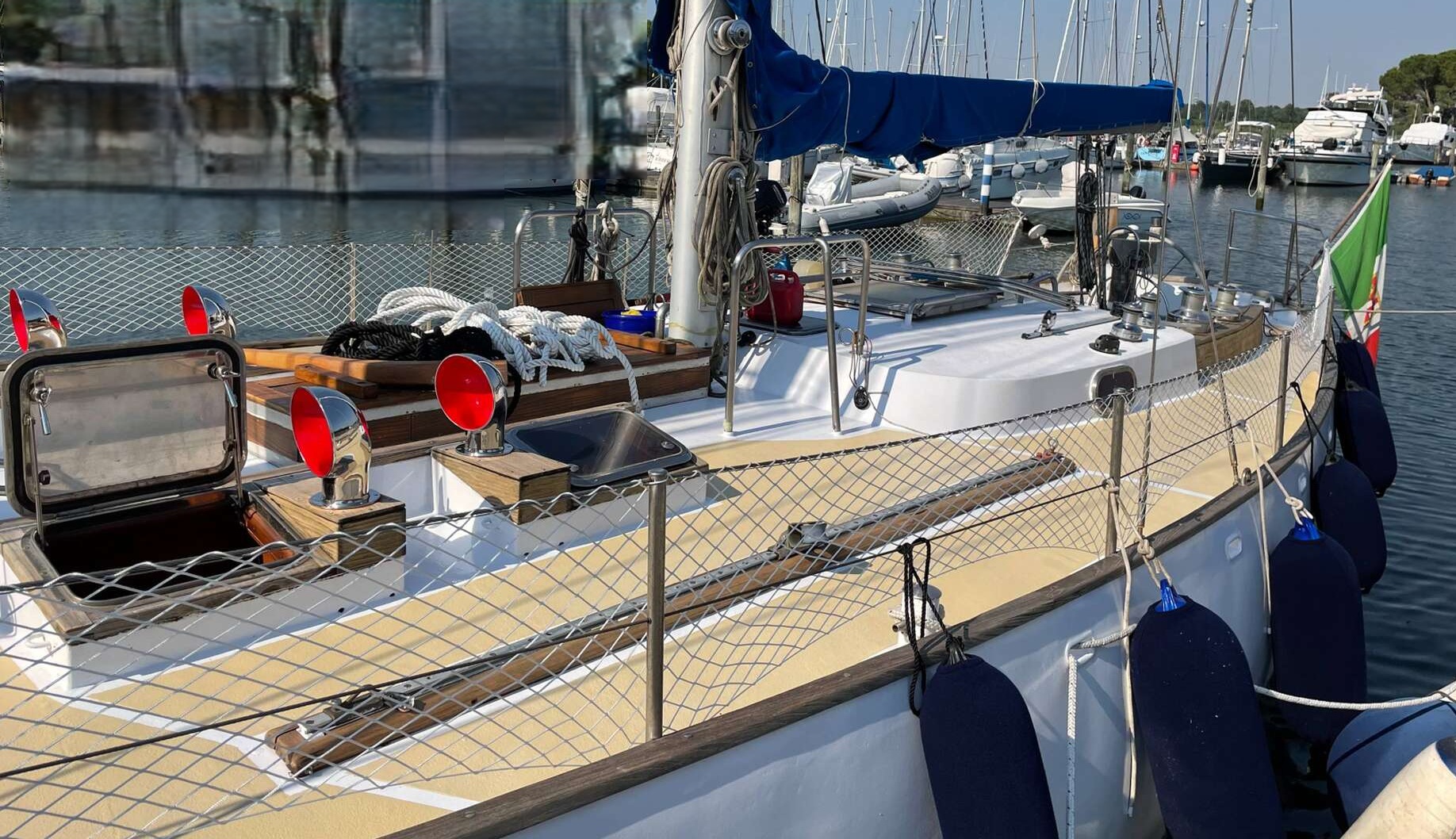

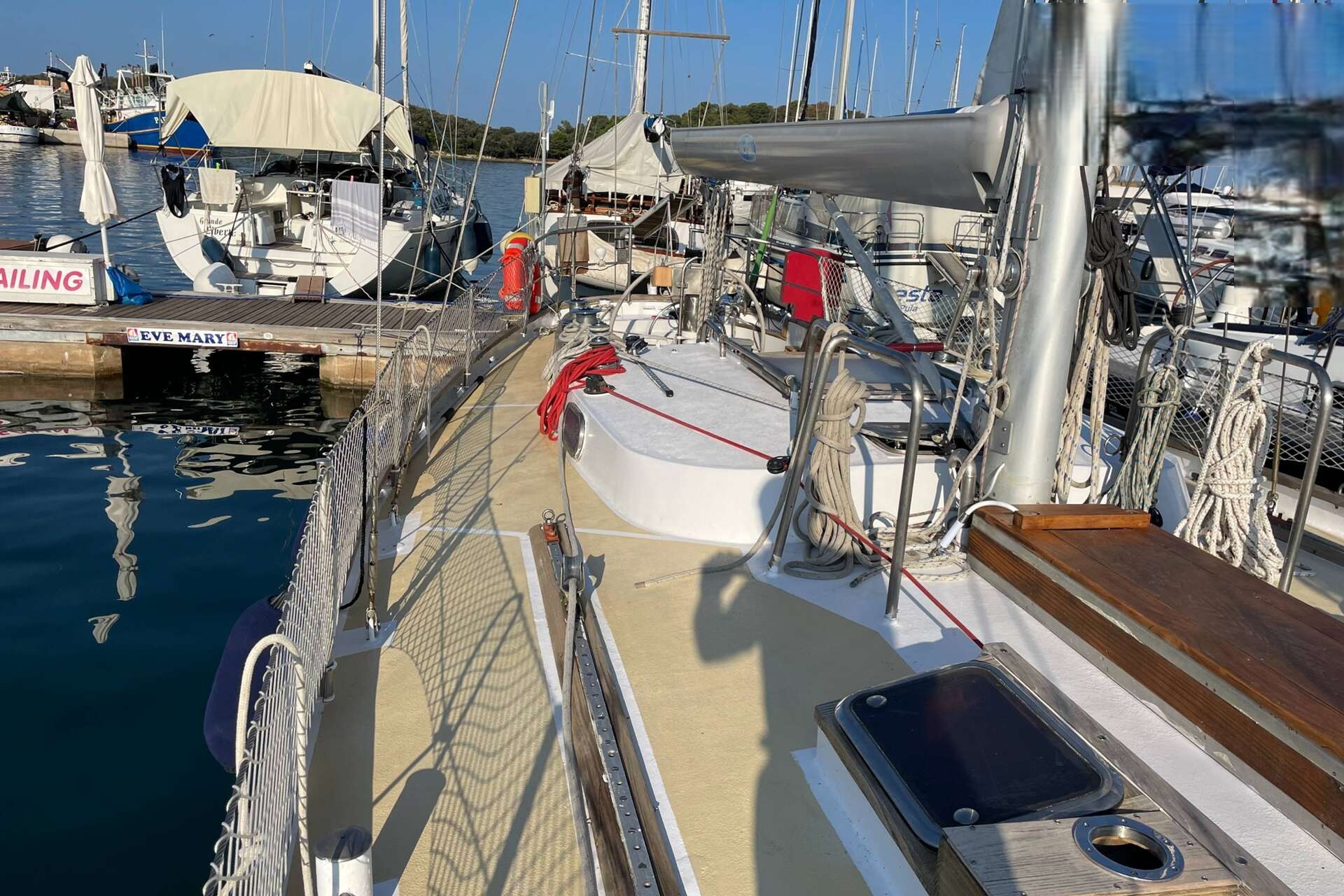

• Deck finish paint 2023. anti-slip light grey
• Cockpit deck finish paint 2023
• Antifouling (year) 2024
• Window material polycarbonate
• Portholes stainless steel
• Insulation foam plates
• Fuel tank (litre) steel
• Freshwater tank (litre) steel
• Blackwater tank (litre) yes
• Level indicator (blackwater) yes
• Greywater tank (litre) polyethylene New 2022 with pump
• Outside helm position mechanical
• Emergency tiller yes

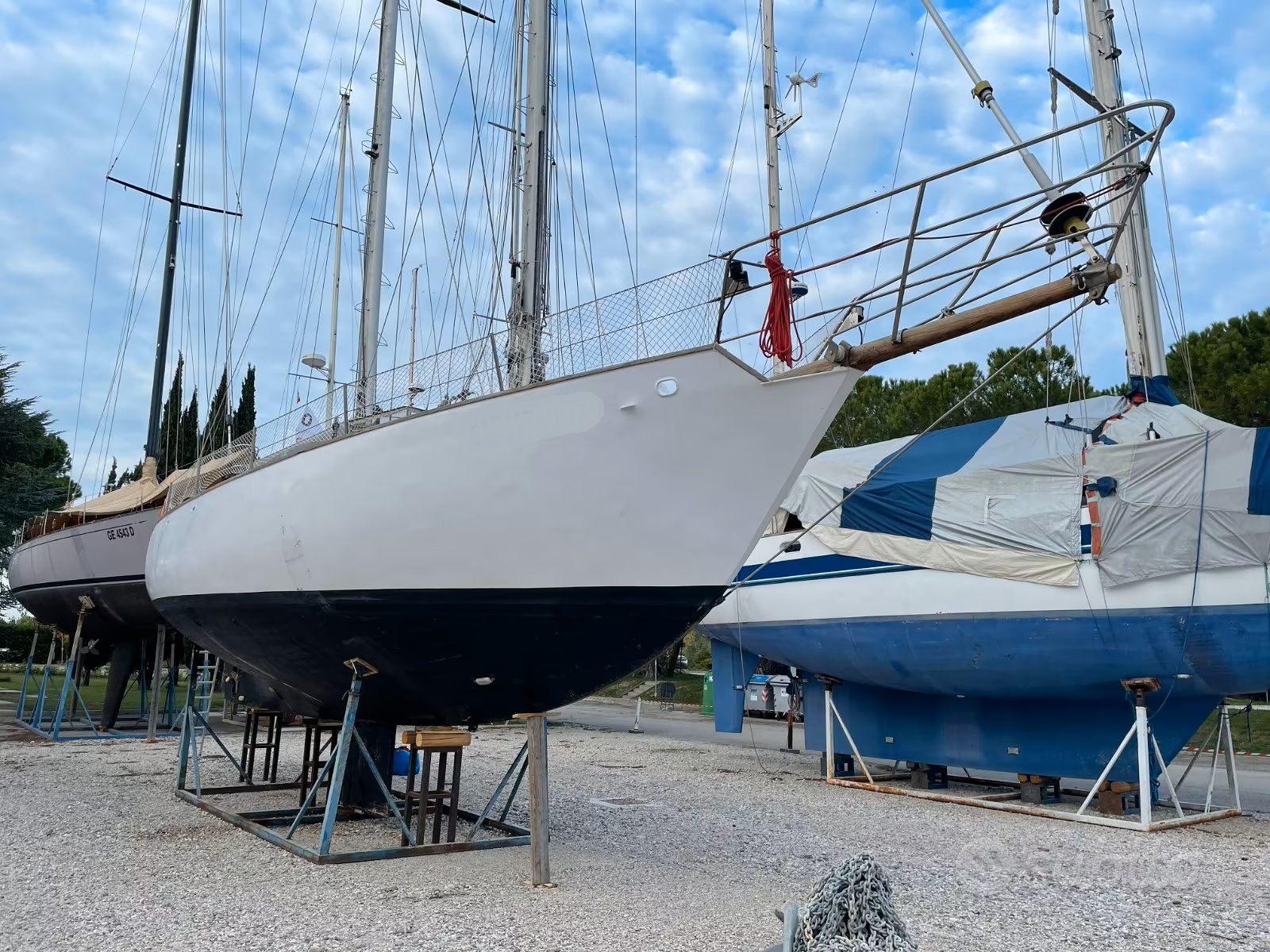

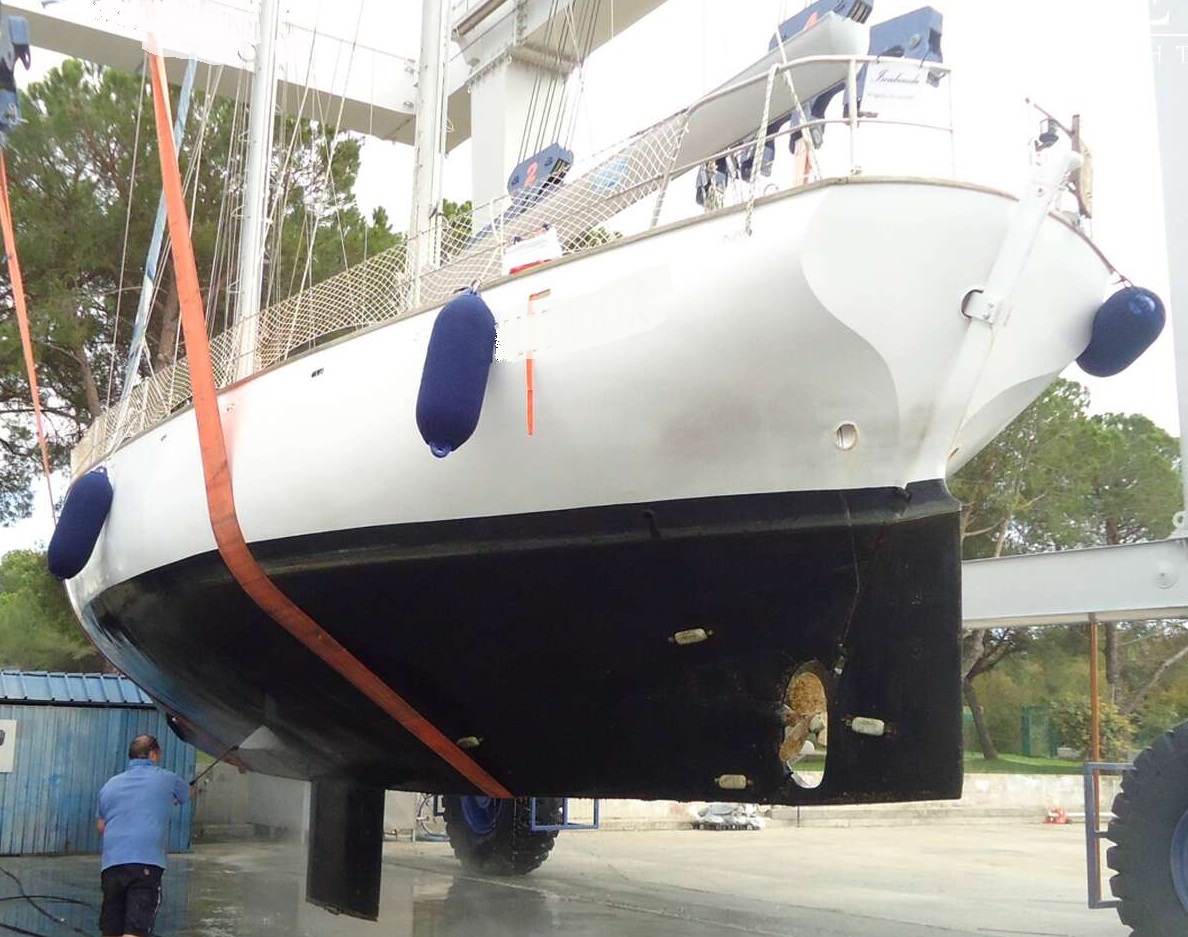

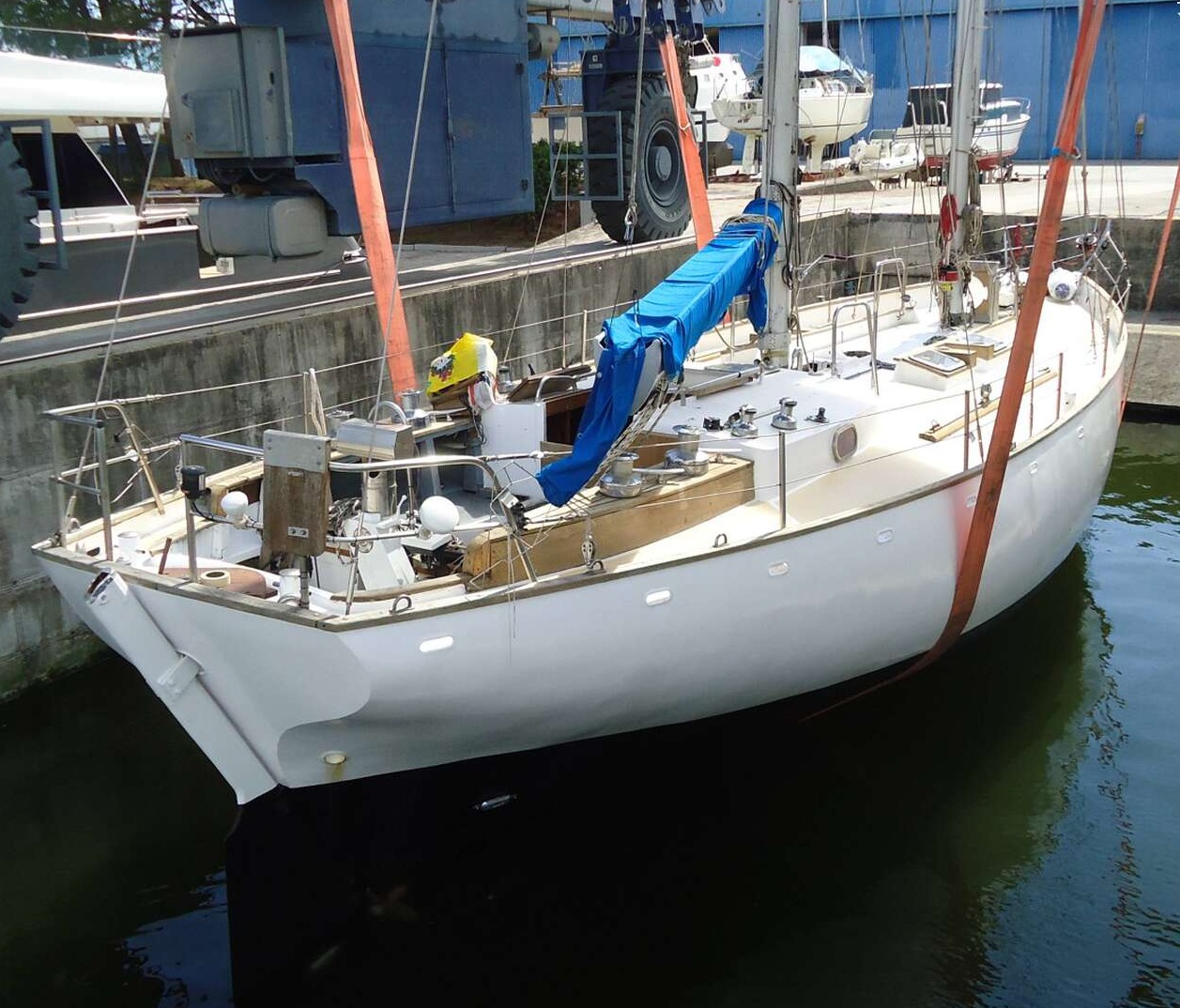

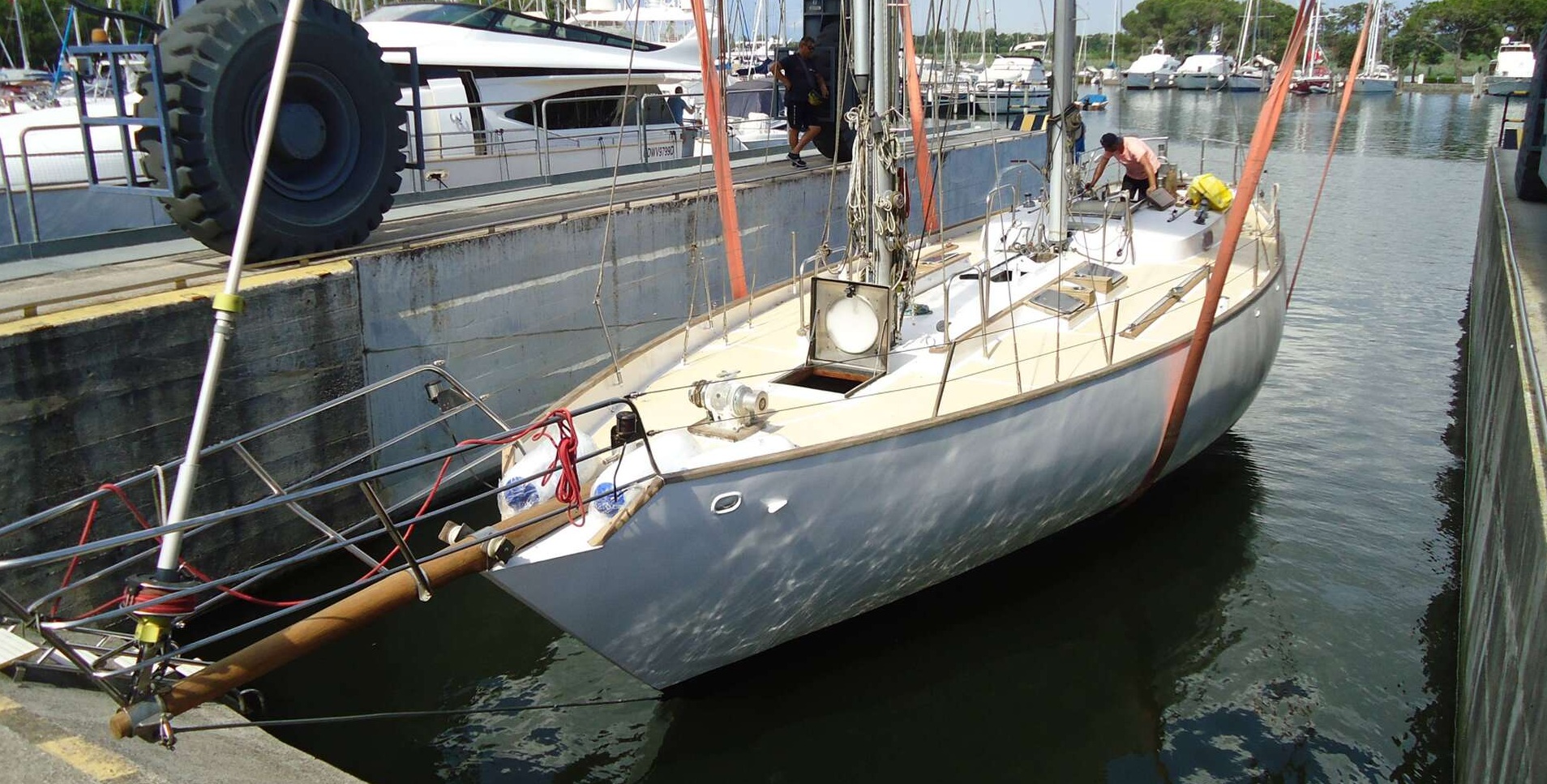

• More info on hull 2022 sandblasted and epoxy primer under water section
• More info on paintworkHull painted 2024, deck painted 2022, grey 2024
• Cabins4
• Berths9

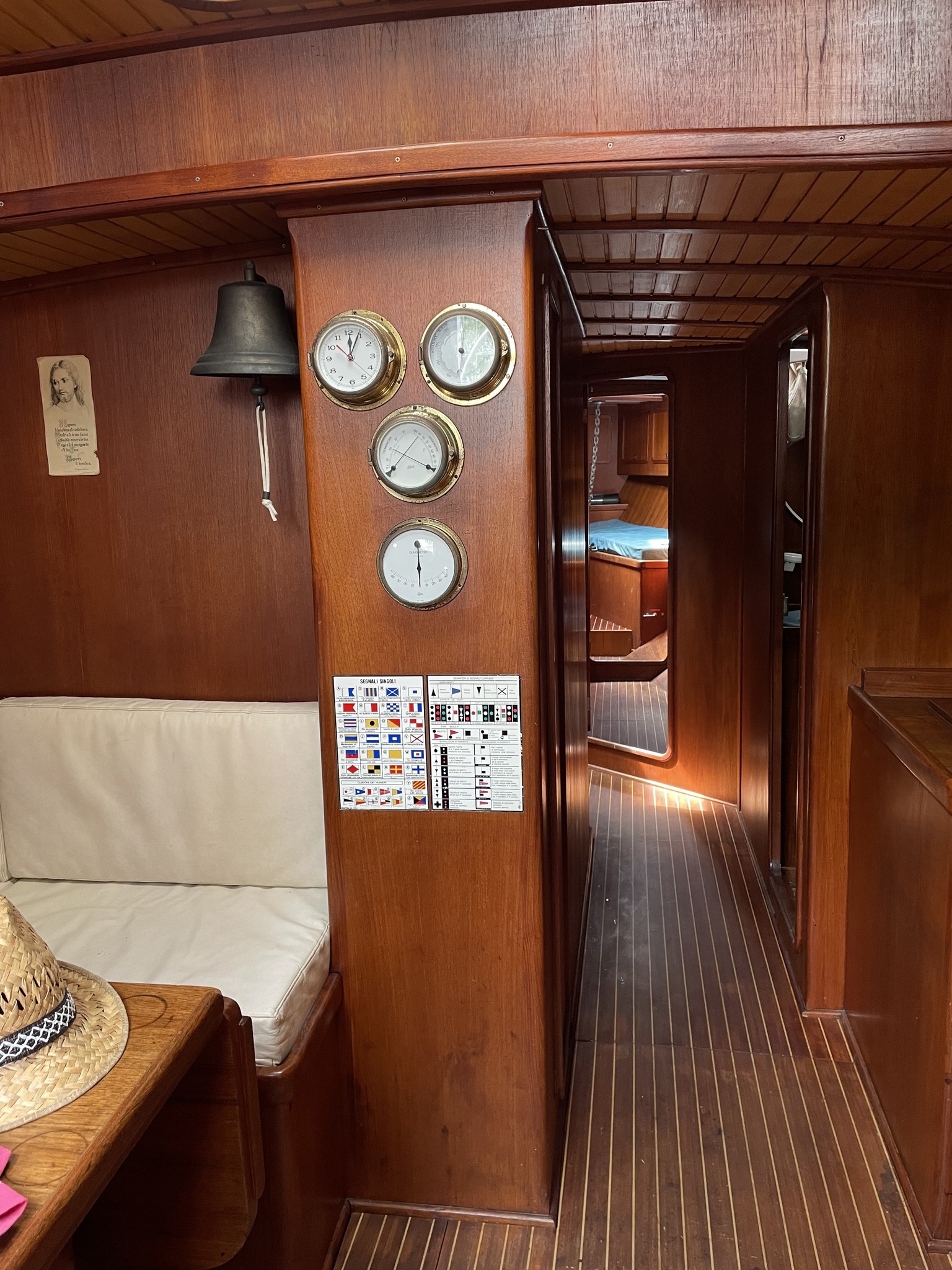

• Interior Mahogany and teak
• Floor teak and holly

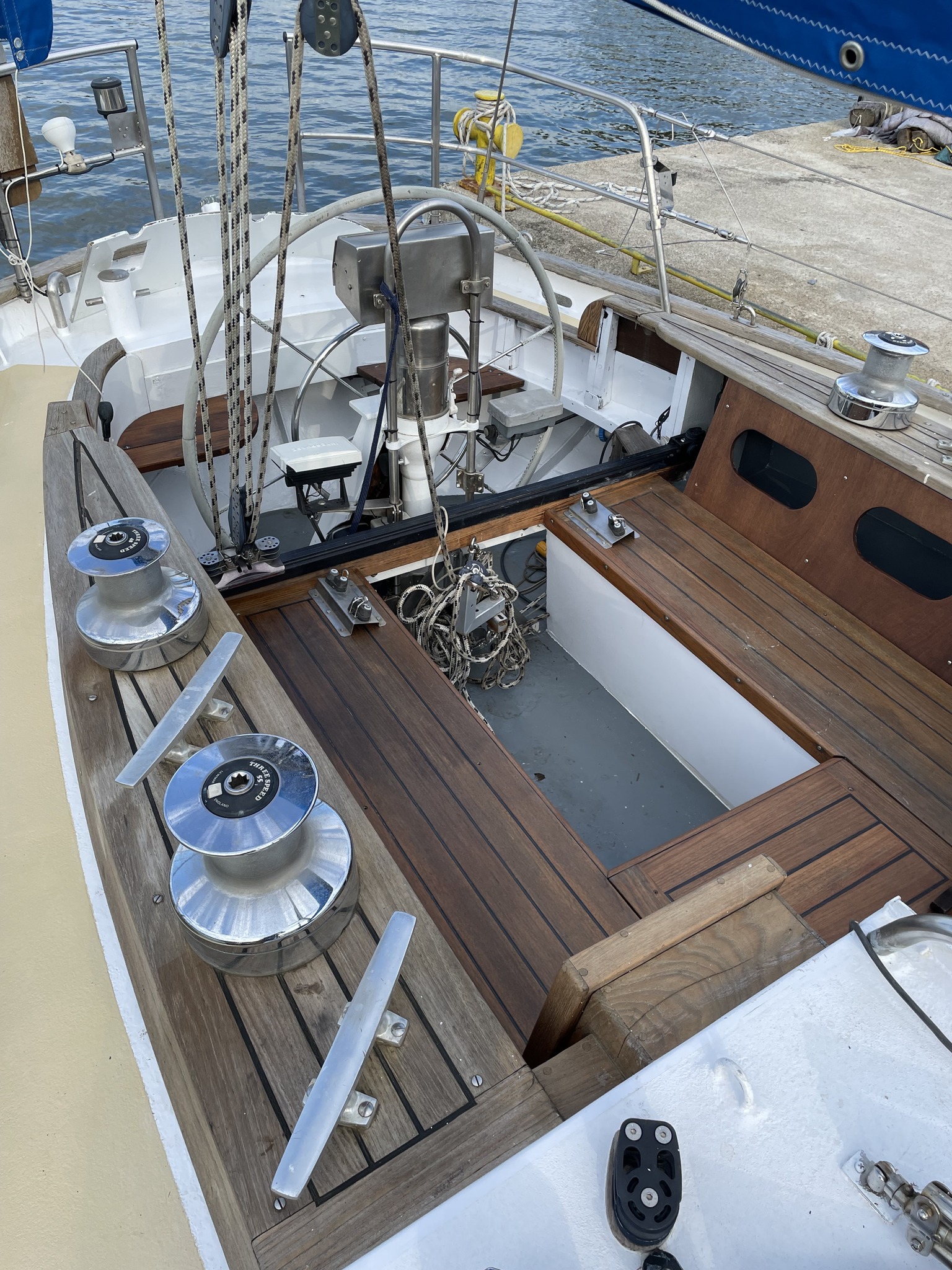

• Open cockpit yes
• Chart tabley es

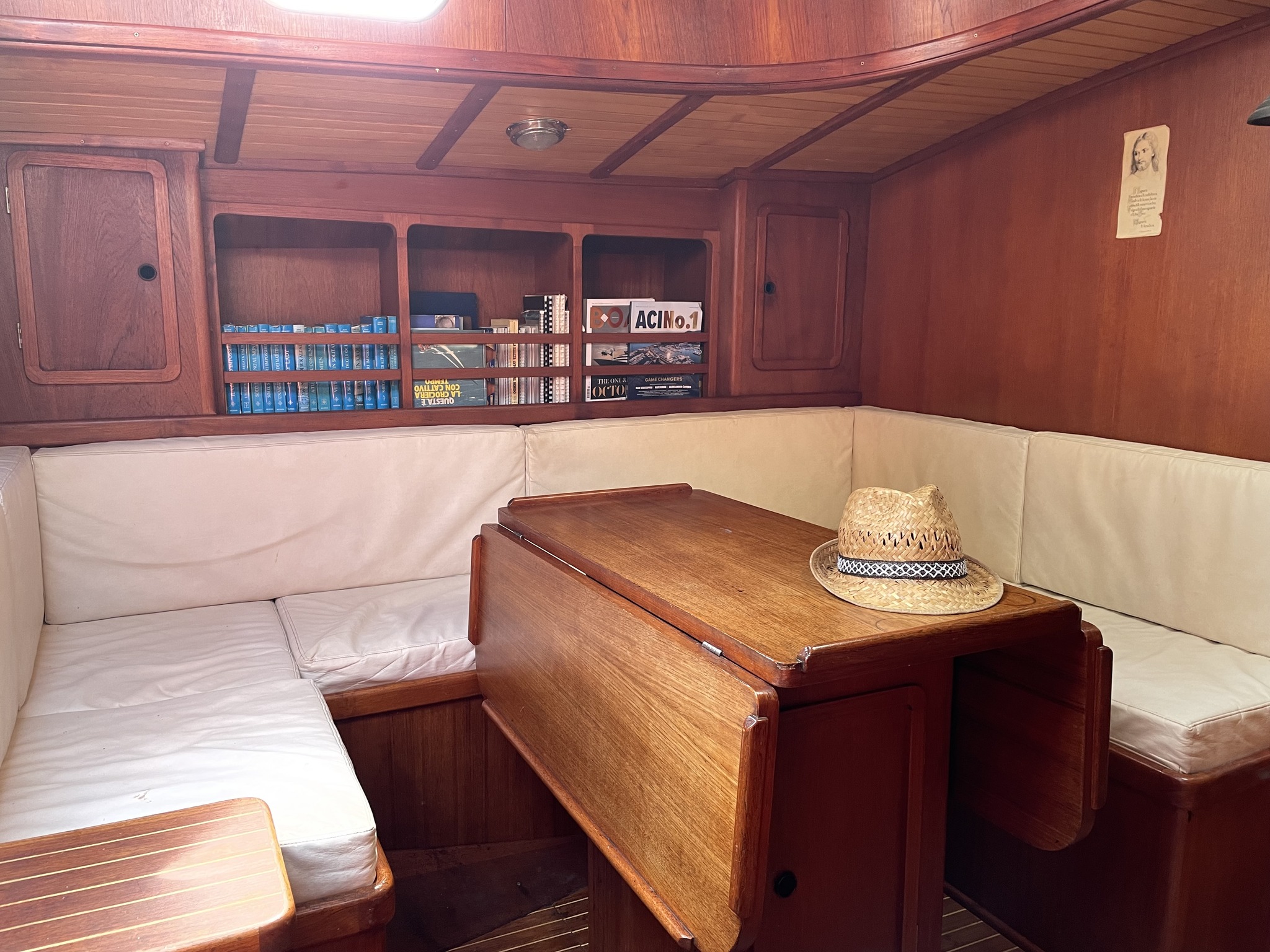

• Dinette 9 sits

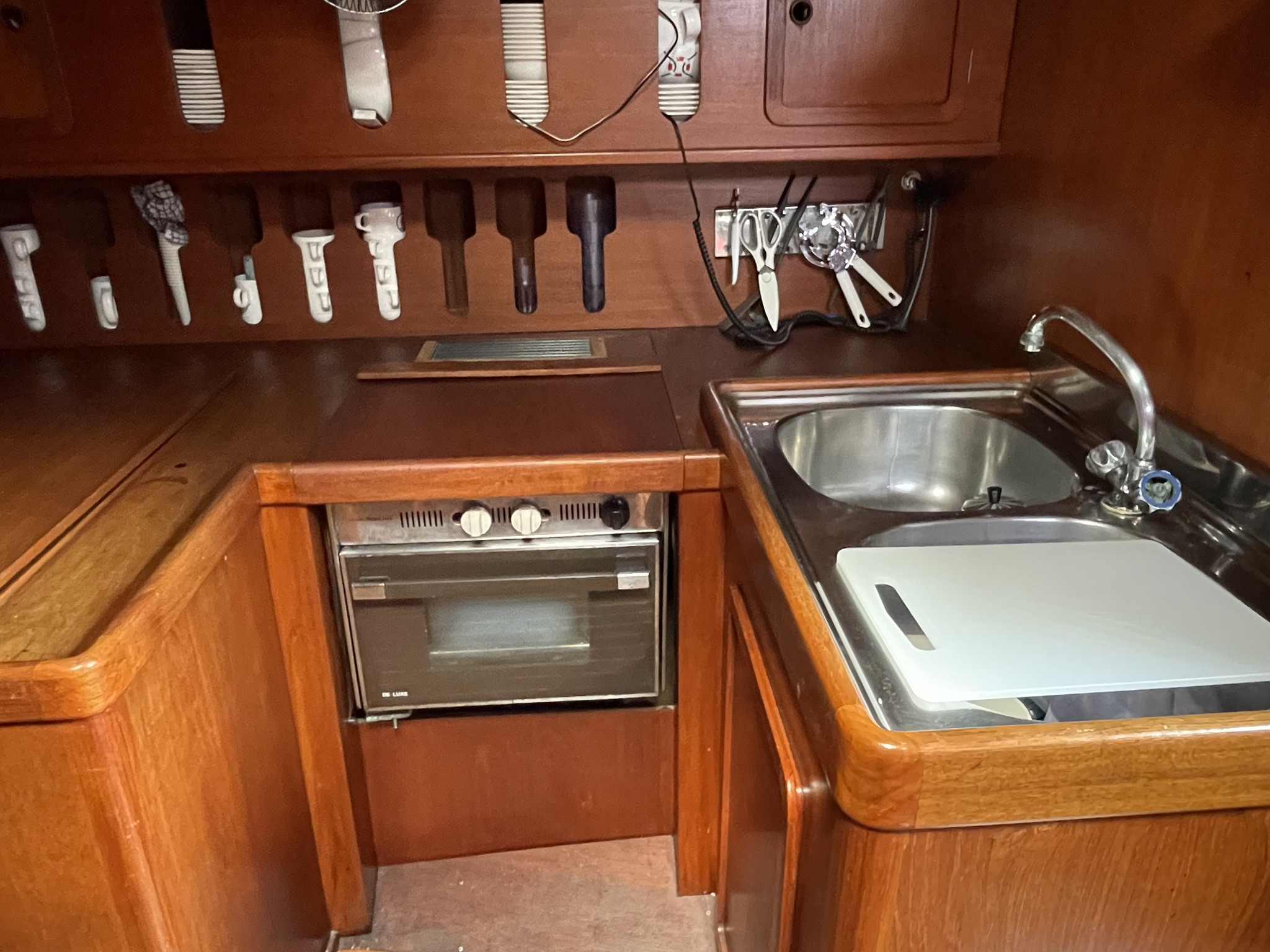

• Galley2 stoves
• Countertop wood
• Sink stainless steel
• Cooker calor gas
• Oven Gas
• FridgeTop loading
• Hot water system 220V + engine Boiler Quick 2023
• Water pressure system electrical
• Owners cabin bunk bed
• Wardrobe hanging/drawers/shelves
• Bathroom en suite

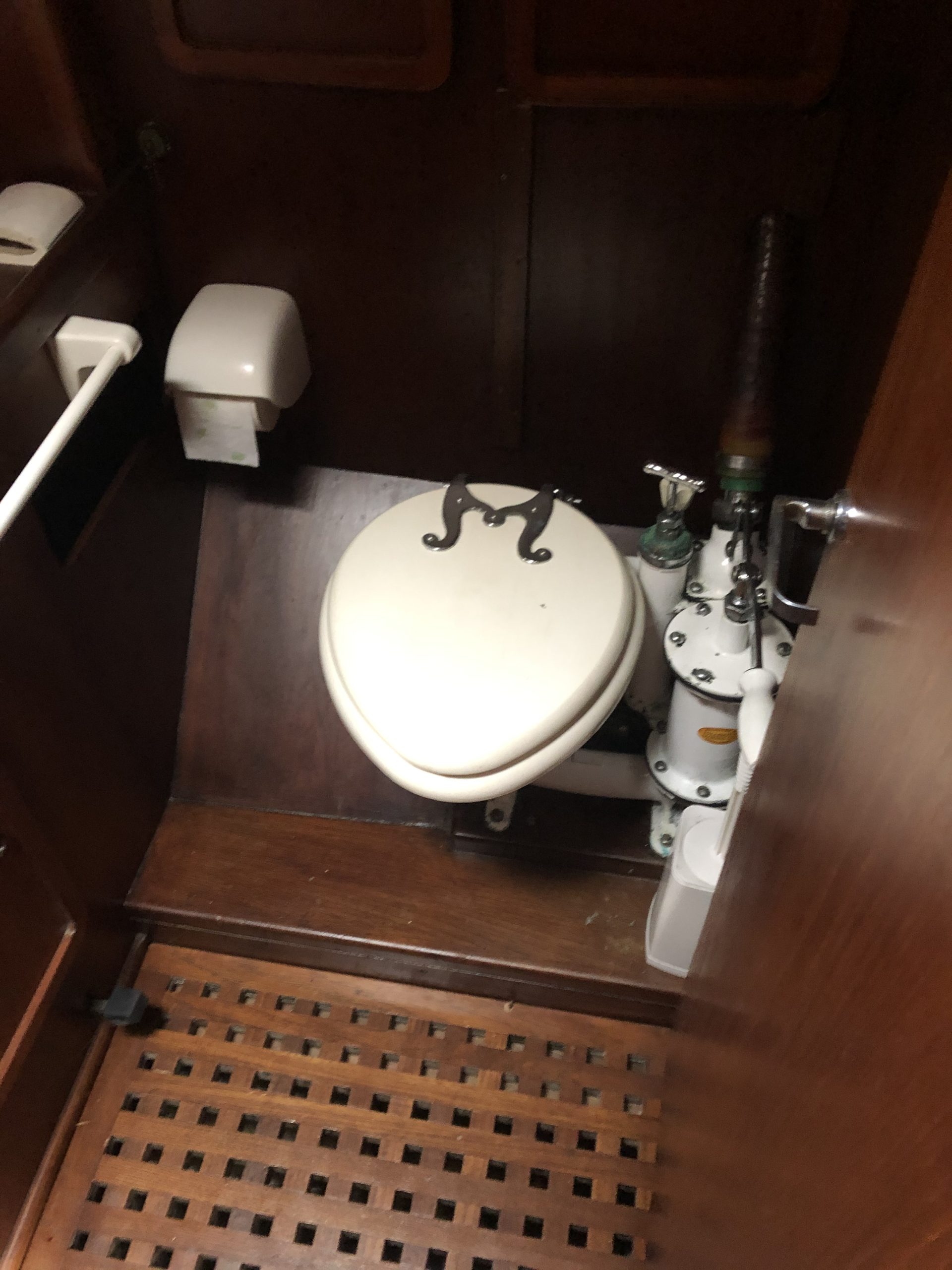

• Toilet shared 2022
• Toilet system manual

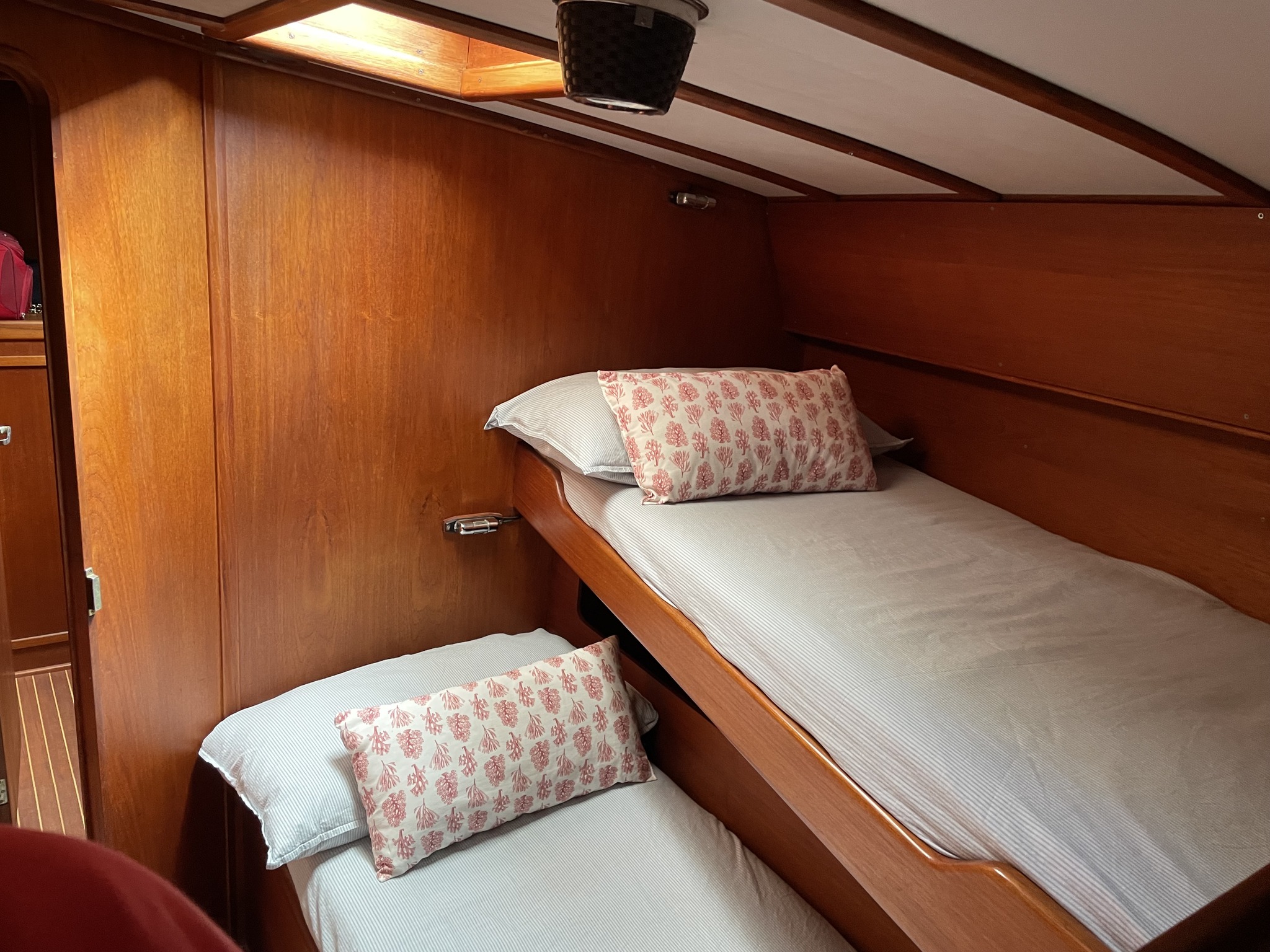

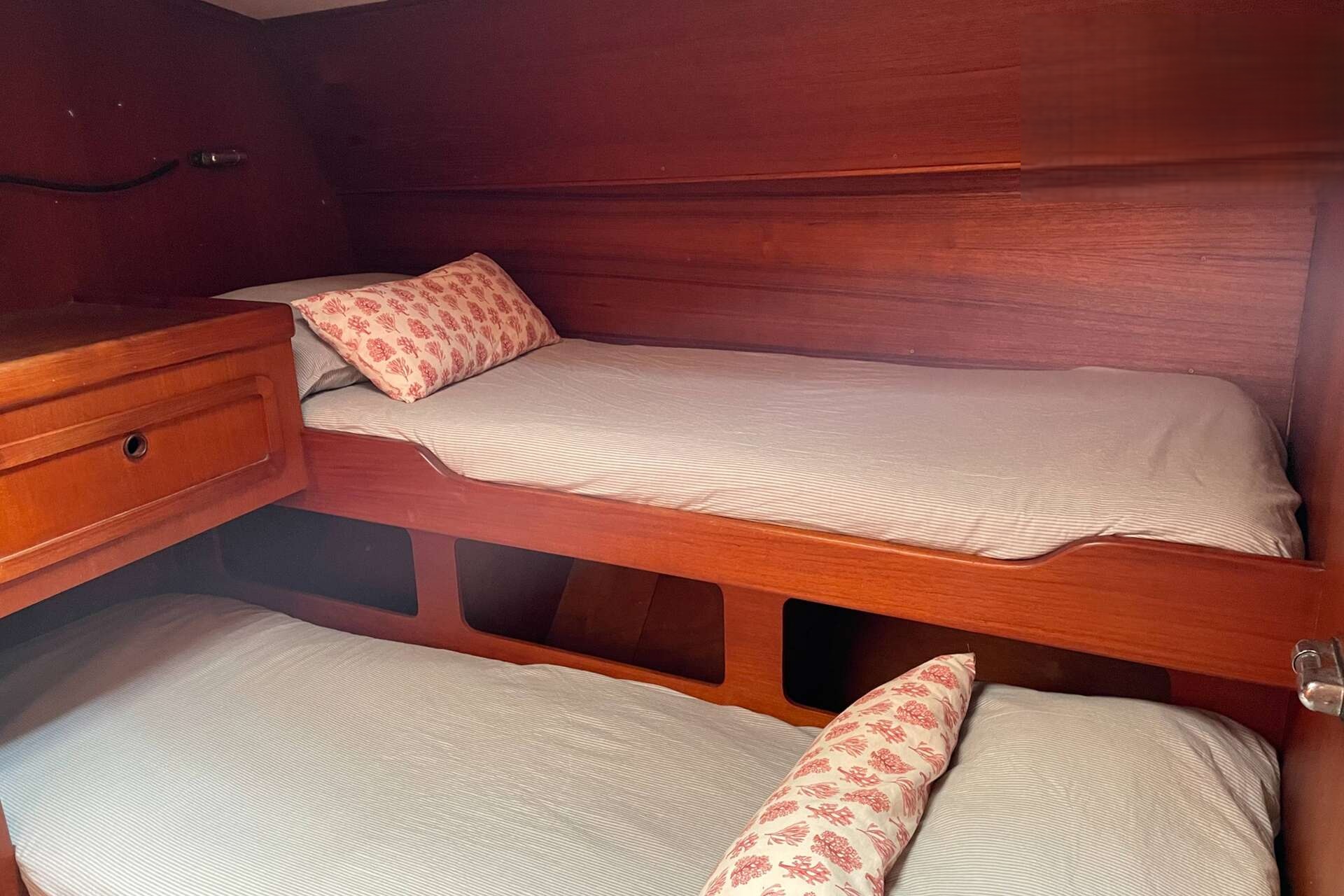

• Guest cabin 1bunk bed
• Wardrobe hanging/drawers/shelves
• Guest cabin 2 bunk bed
• Wardrobe hanging/drawers/shelves
• Guest cabin 3v-bed
• Wardrobe hanging/drawers/shelves
• Extra info Fridge motor and exchanger new 2022
Machinery
Make Iveco
• Type 8041M
• HP 86
• kW 63.30
• Fuel diesel
• Year installed 1984
• Maximum speed (kn)7,6
• Cruising speed (kn)6
• Consumption (l/hr) 5
• Range (nm) 900
• Engine cooling system freshwater heat exchanger Full service and replaced gaskets head, sea water,injector check
• Drive shaft
• Engine controls mechanical
• Gearbox mechanical
• Bowthruster2022, Twin propellor 100kgf
• Exhaust watercooled Replaced 2022 new raiser and muffler
• Propeller type feathering
• Propeller blades 3
• Propeller shaft material stainless steel Replaced 2022
• Shaft lubrication grease
• Electric bilge pump2 automatic, 2021, 2024
• Bilge alarm yes
• Batteries 7x AGM total
• Start battery 1x AGM 100 Ah 2022
• Service battery 4x 100Ah 2022
• Bowthruster battery 2x AGM 105Ah, 2022
• Battery charger Victron 70 Ah, 2022
• Inverter Quick
• Shorepower with cable

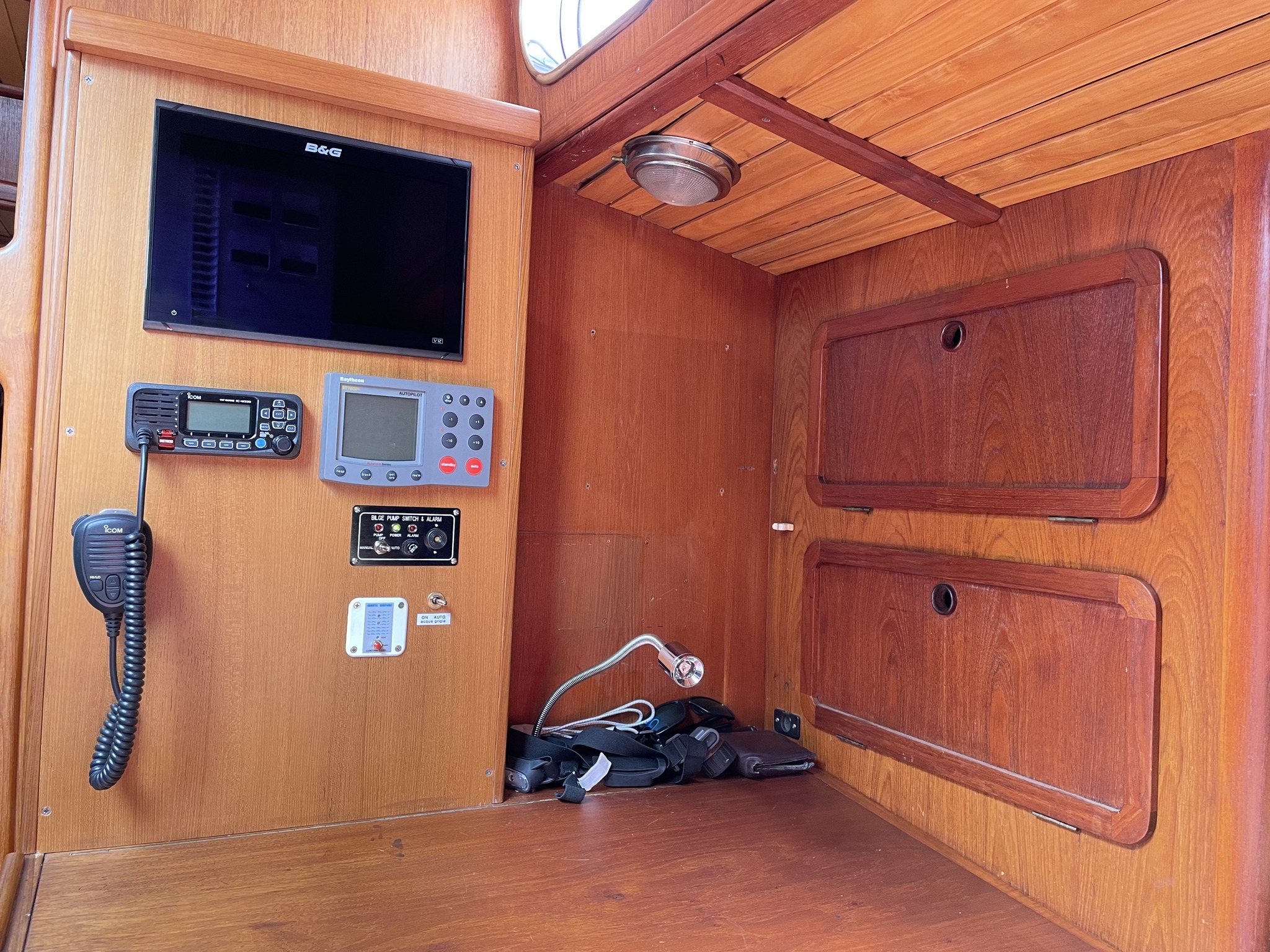

Navigation
• Log Raymarine
• Windset Raymarine
• VHF ICOM, 2022
• Radar B&G Halo, 2022
• GPS Vulcan 12, 2022
• Plotter Vulcan 12, 2022
• Plotter/GPS 2022
• Radar/GPS 2022
• Extra info Engine refurbished 2022
Equipment
• Boarding ladder stainless steel
• Deck shower yes
• Anchor CQR Plough 26kg
• Anchor chain 60 meters 12mm
• Windlass electrical
• Sea railing stainless steel
• Life raft container
• Life raft (pers) 10
• Last life raft survey 2022
• Lifejackets 10
• Fire extinguisher 4x 2022
• Extra info Sea intakes checked and replaced

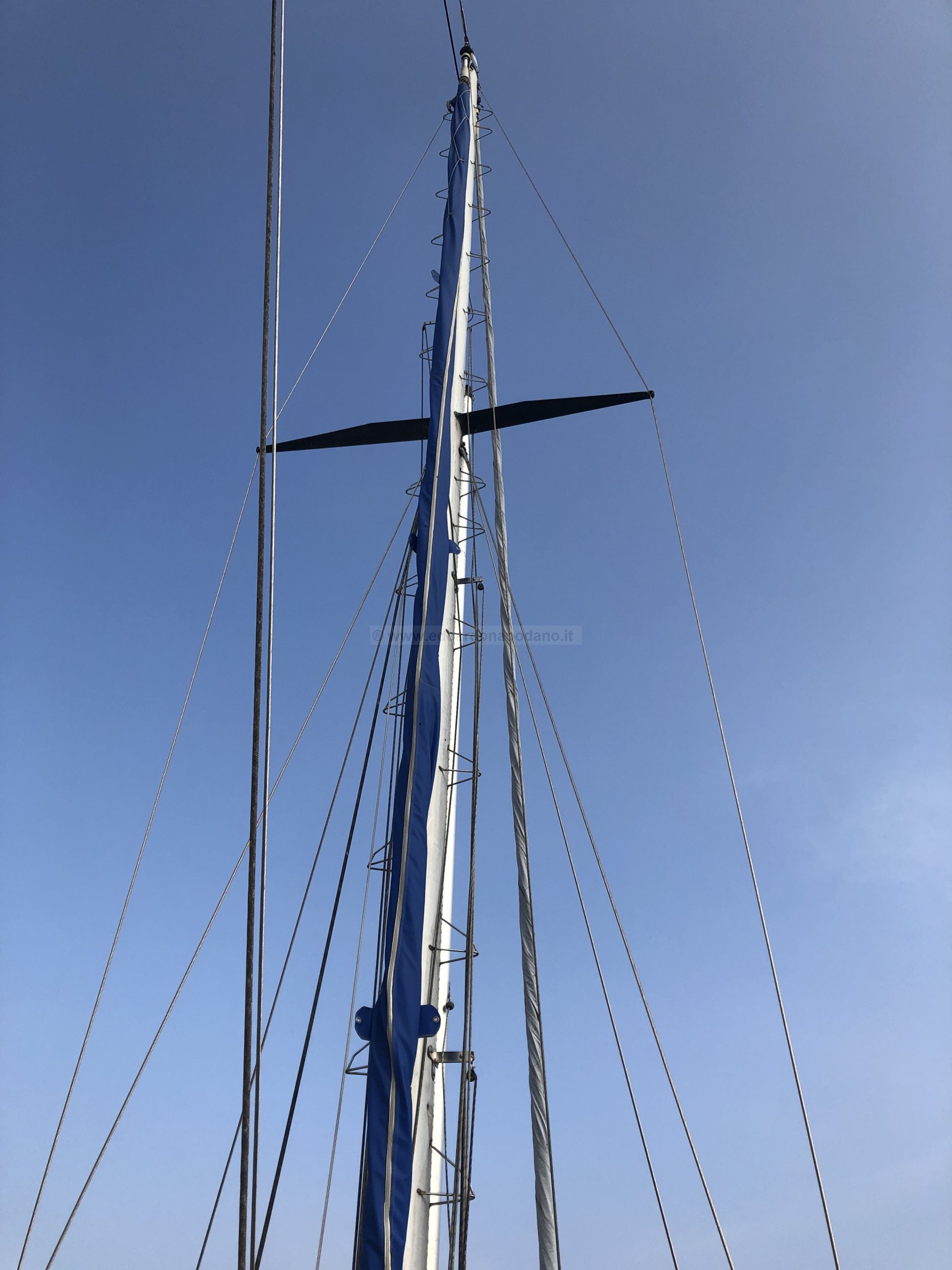

Rigging
• Rigging schooner

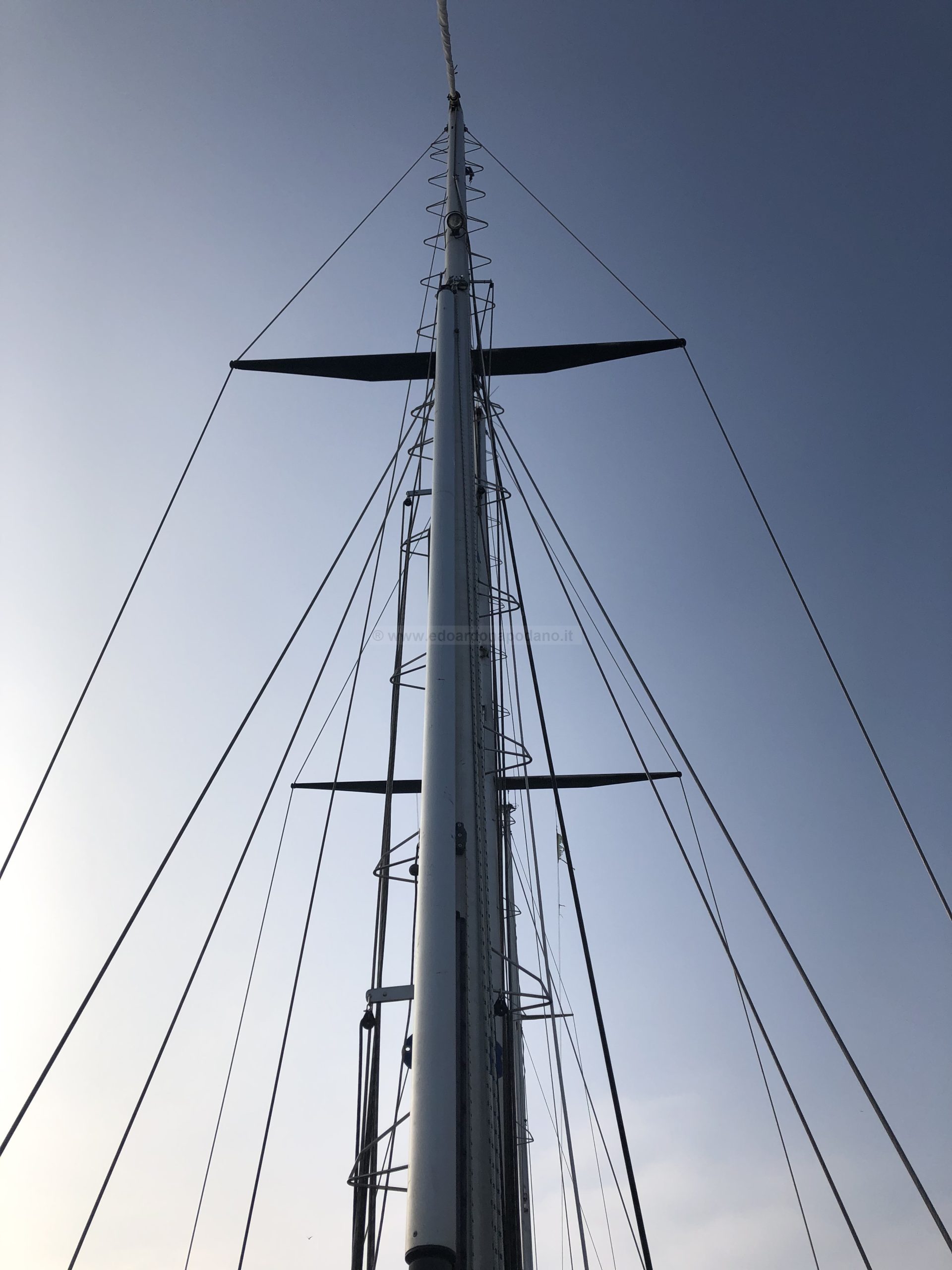

• Material mast aluminium 2x
• Spreaders Aluminium
• Mainsail yes
• Mainsail covery es
• Furling boom Profurl
• Fisherman staysail yes
• Mizzen Furling new 2024
• Jib yes
• Genoa Furling
• Cutter furler yes
• Spinnaker yes
• Reefing System main in-boom furling Profun
• Boomvang gasspring 2024
• Primary sheet winch4x ST40 Lewmar, 2x ST48 Lofrans, 2x ST55
• Secondary sheet winch 4x Lofrans ST16, 1x ST24, 1x ST40
• Spinnaker winch yes
• Spi-pole aluminium
Descrizione: imbarcazione con quattro cabine, 1 matrimoniale a prua e 3 cabina doppie a centro/prua
barca. A poppa dinette sul lato sinistro, cucina sul lato destro e letto singolo a destra per la guardia.
Arredamento in pannello di compensato impiallacciato verniciato con finiture in massello, cucina con
frigo, fornello a gas e forno. Rivestimenti pareti e soffitti cabine in compensato verniciato o in perline

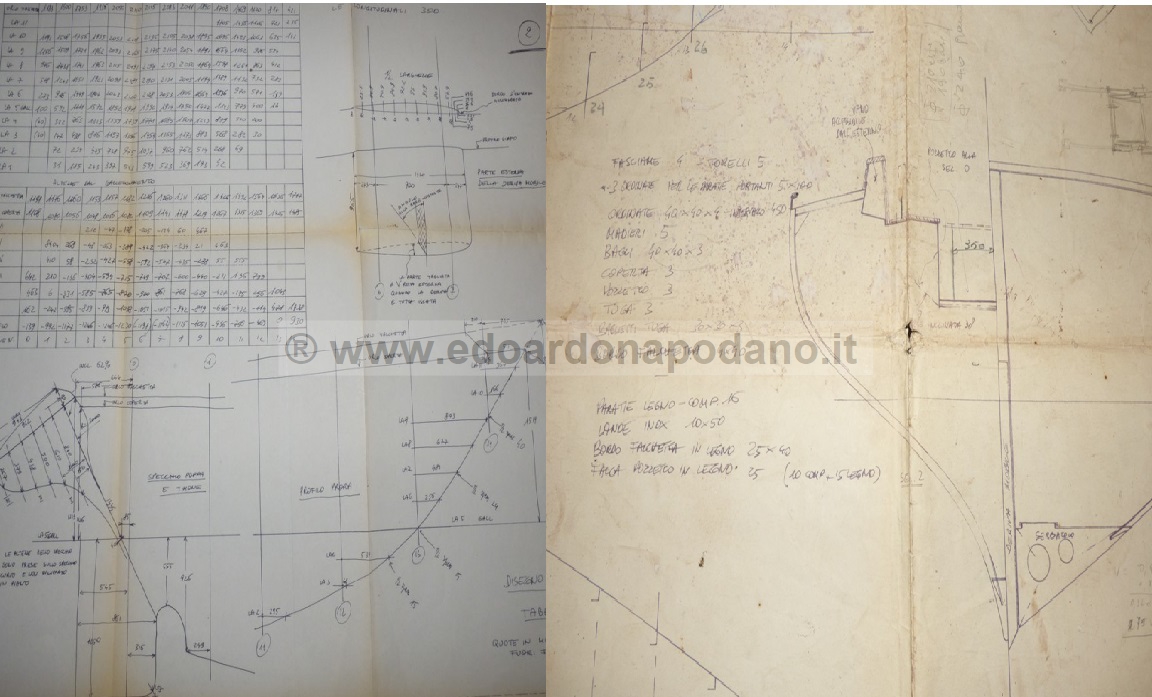

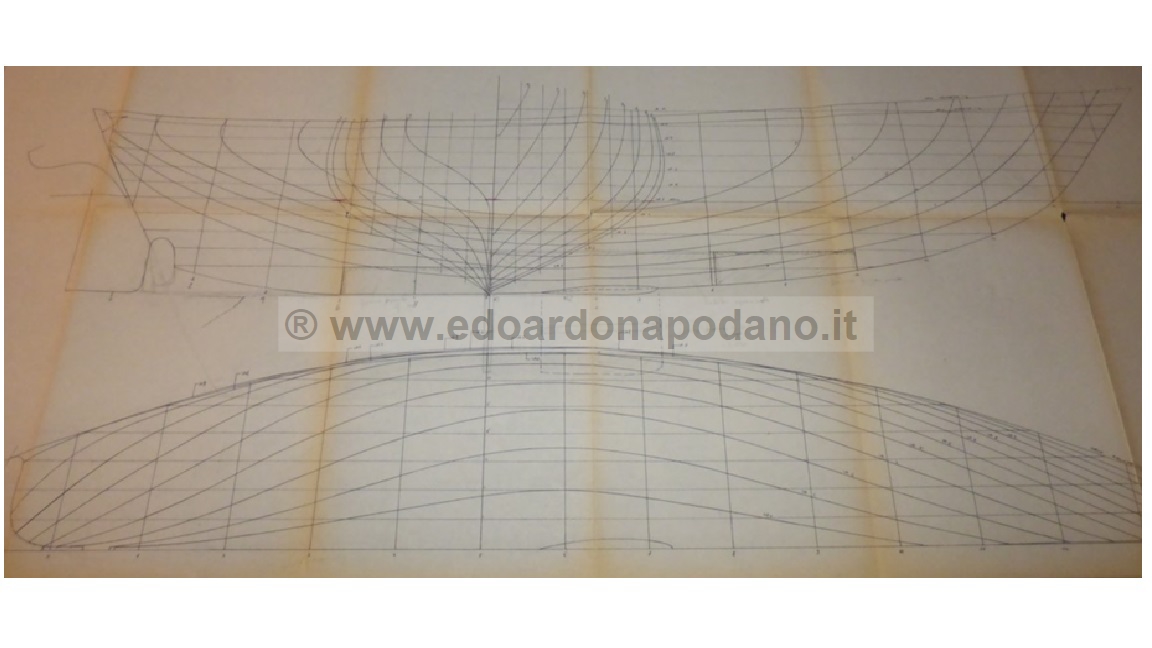

in legno. Pozzetto con spray-hood. Progetto delle linee d’acqua e degli interni di Carlo Sciarelli.
