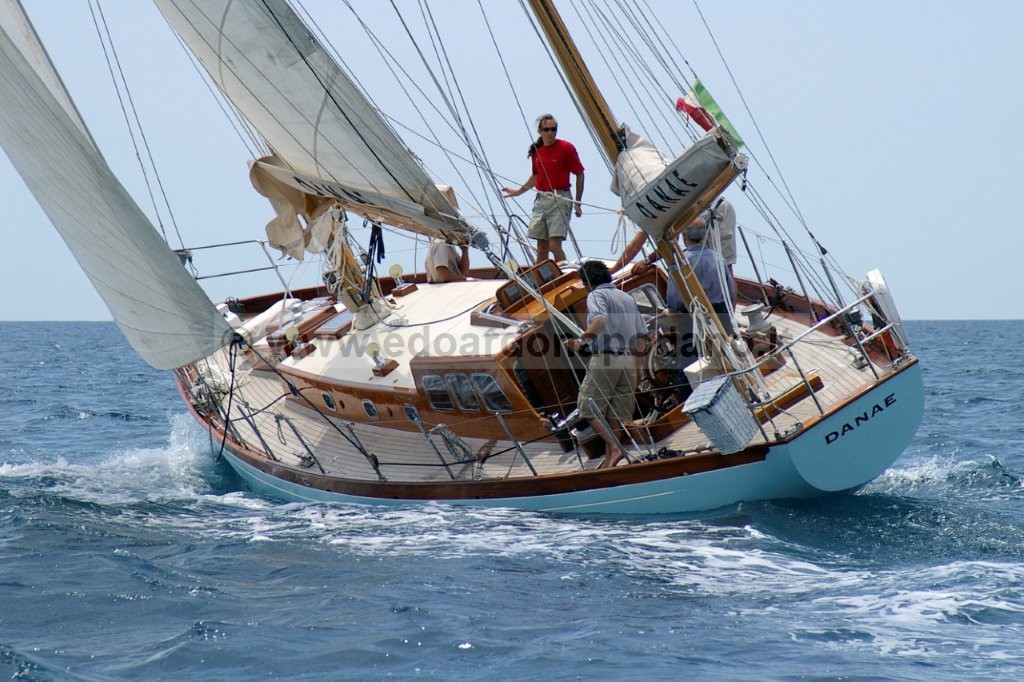

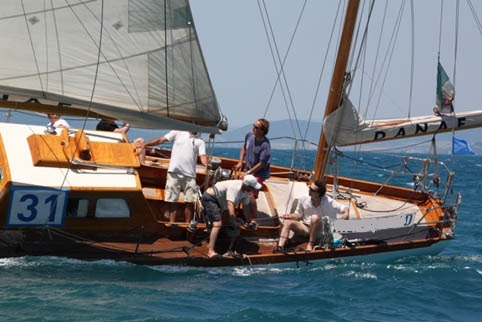

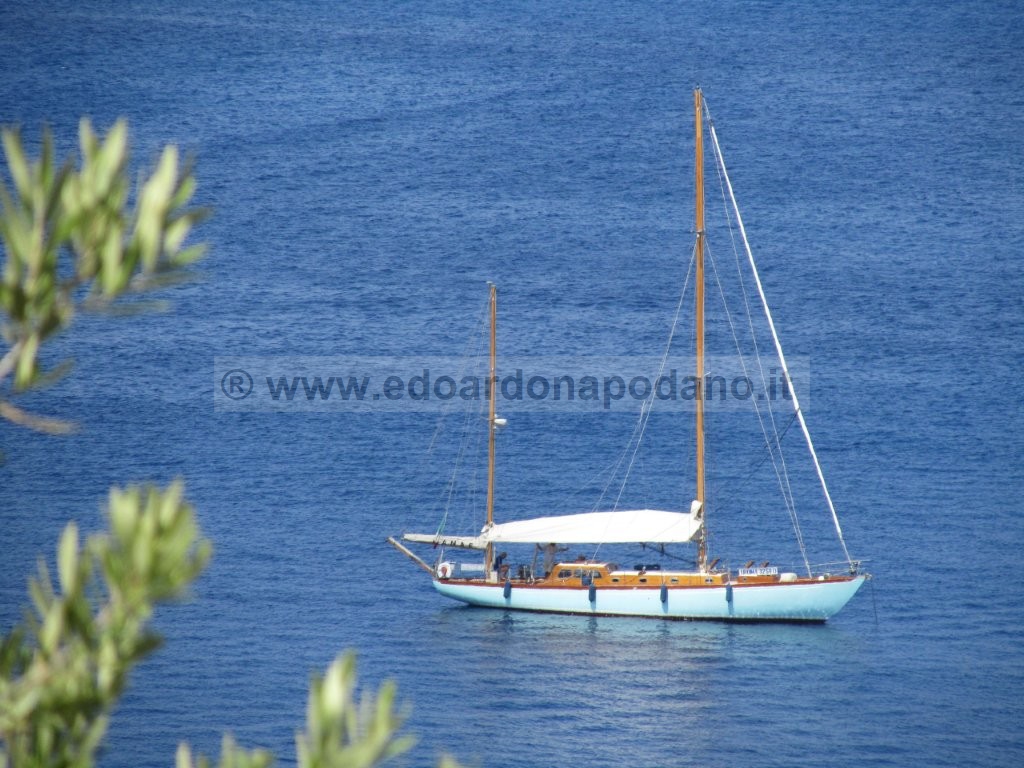

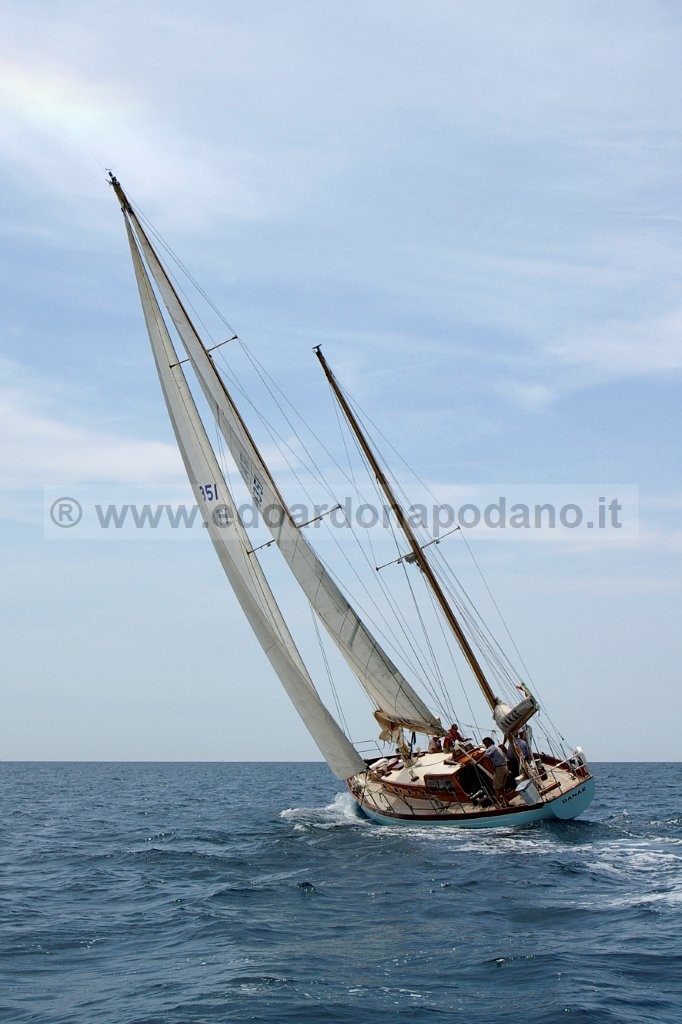

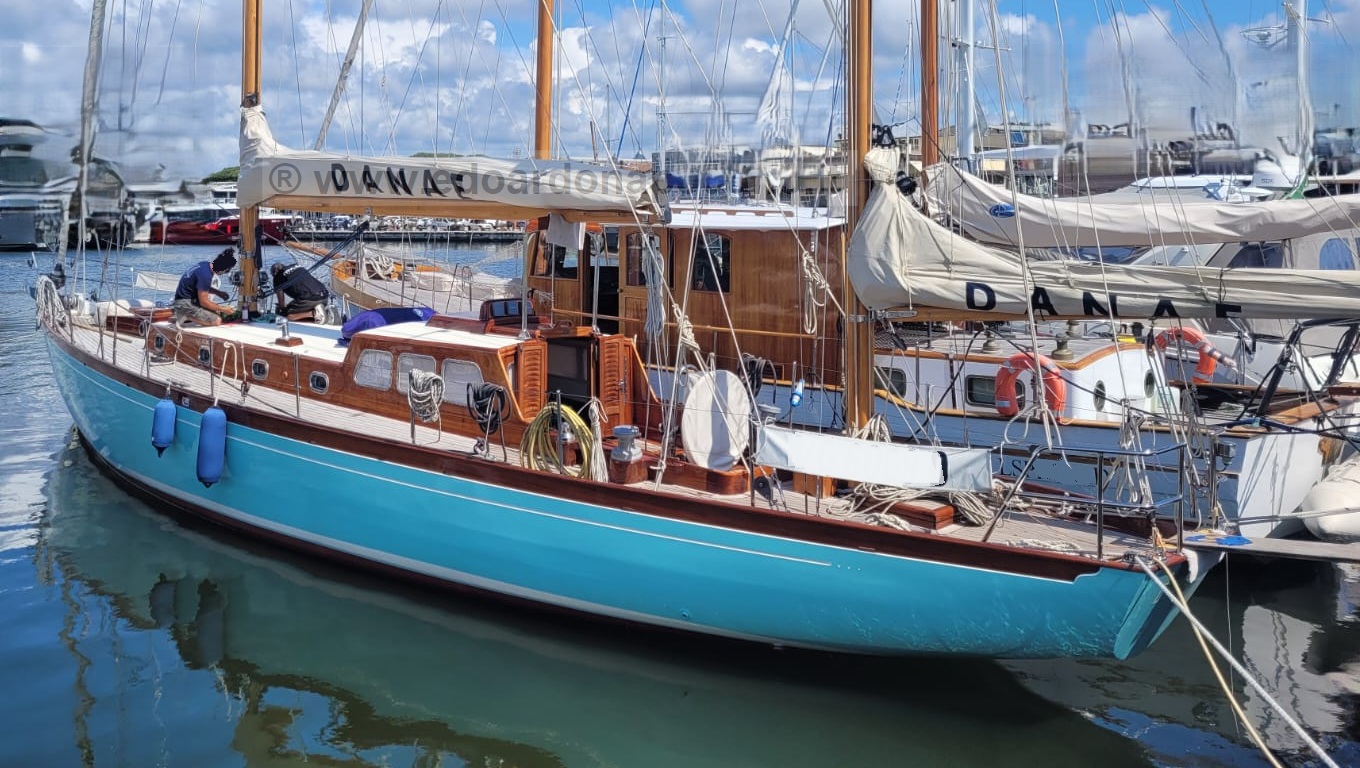

Danae is really well maintained boat where every big restoration and structural issue was already solved. A sound boat for any kind of cruising and racing. Illingworth designerepresents a sure bet for every genuine yachting enthusiast *.
Year 1955
Rig yawl

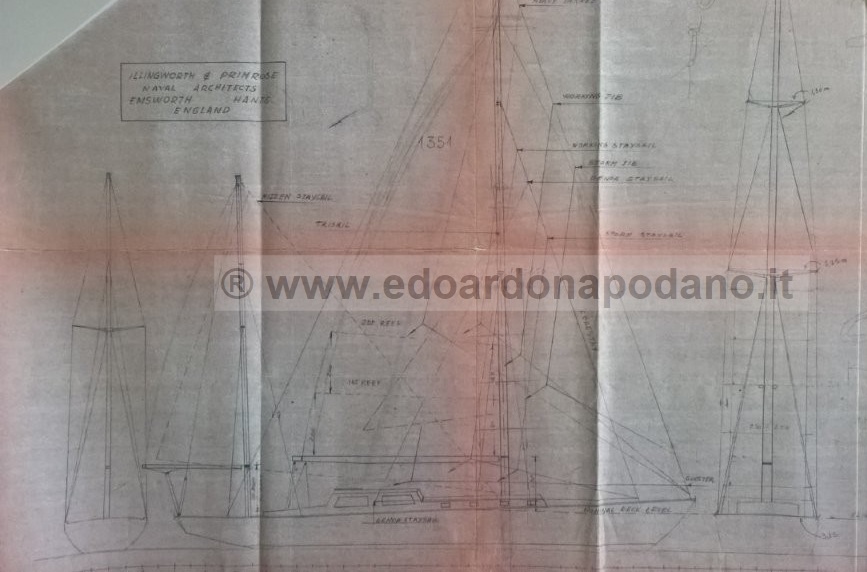

Designer Illingworth & Primerose

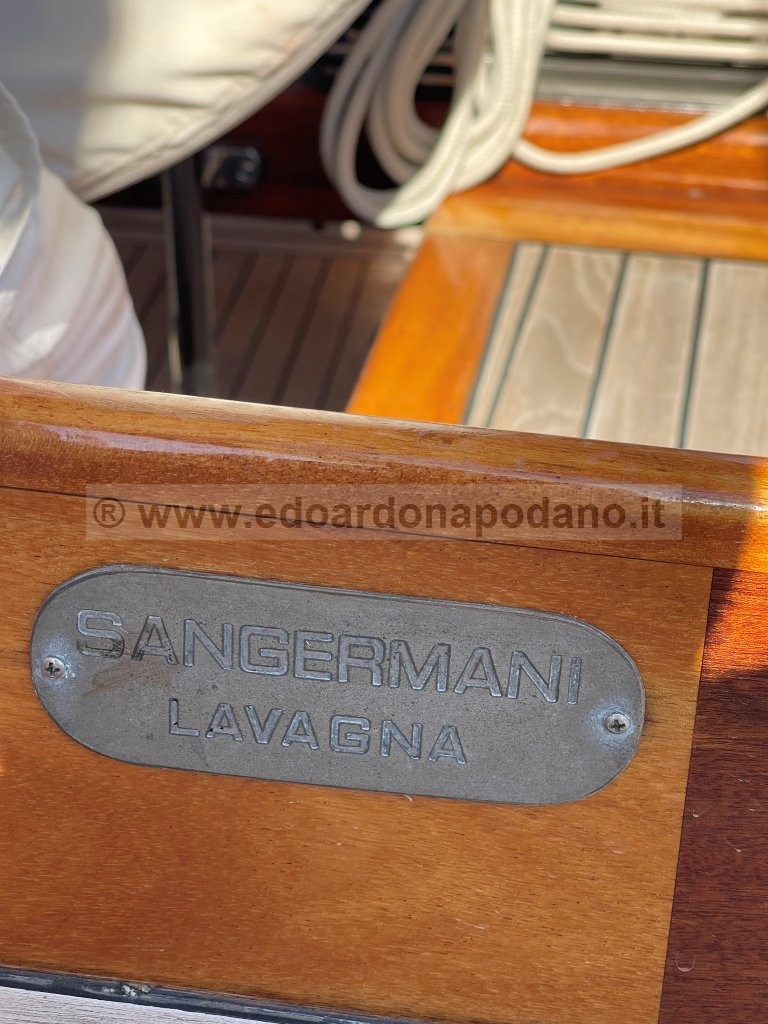

Builder Sangermani
Material Cedar / Mahogany / Oak / Spruce
Loa 16.94 m
Lwl 11.80 m
Beam 3.54 m
Draft 2.38 m
Displ 18 t
Ballast 8.000 kg
Engine 75 hp Volvo Penta (2006, 500 hrs, fully regenerated 2023) – Max speed 8 kn
Autopilot (all Electronics by Raymarine, new 2005)
Water maker (60 l/hrs@12V)
Air cond
Heating (By Frigomar, 2026)

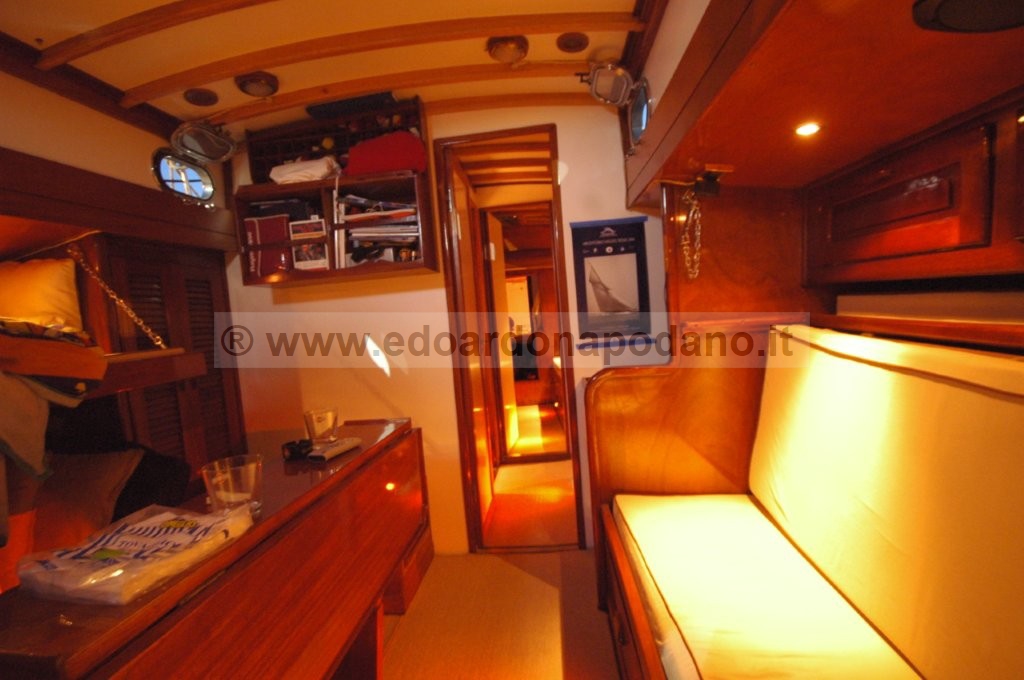

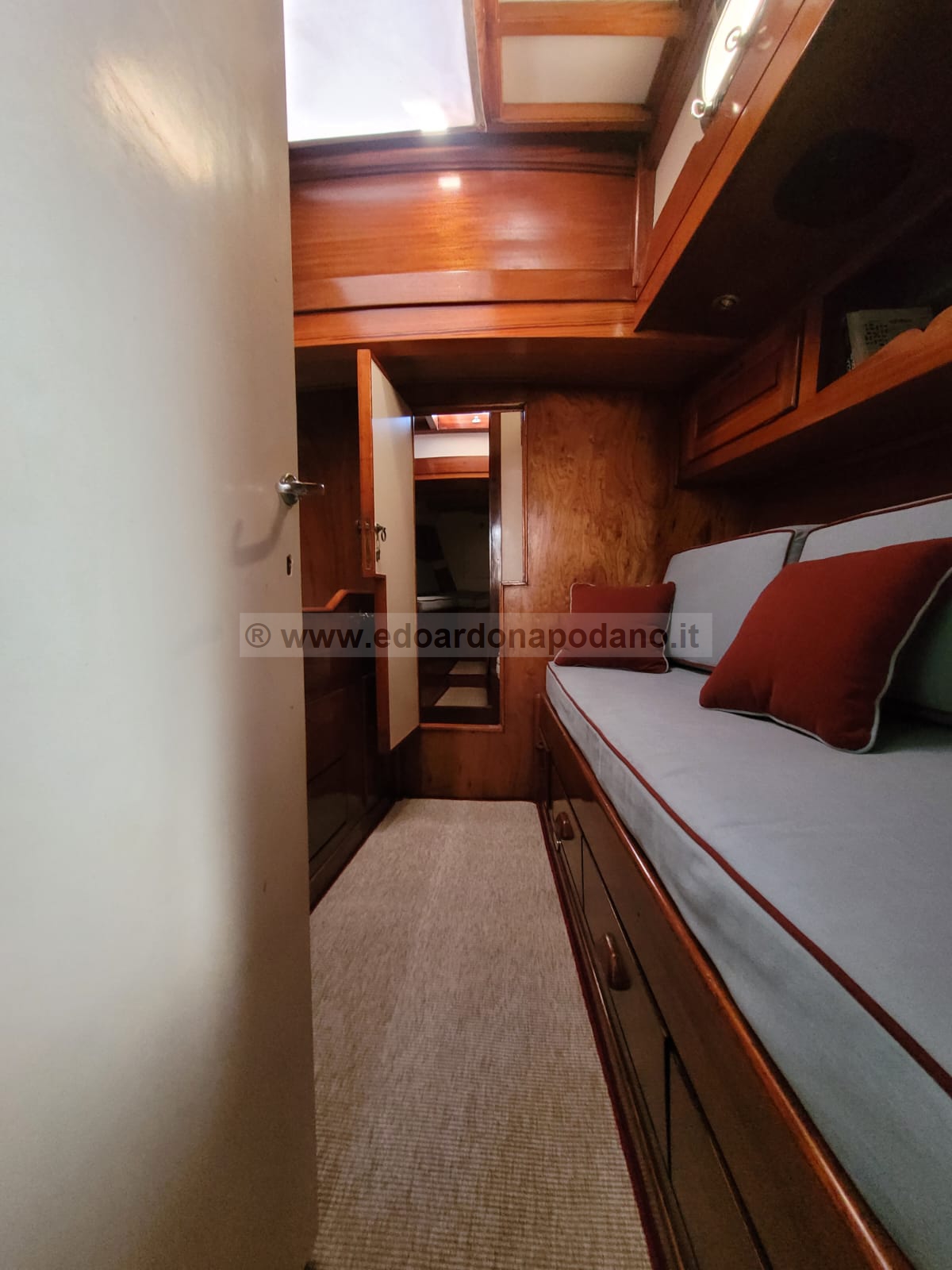

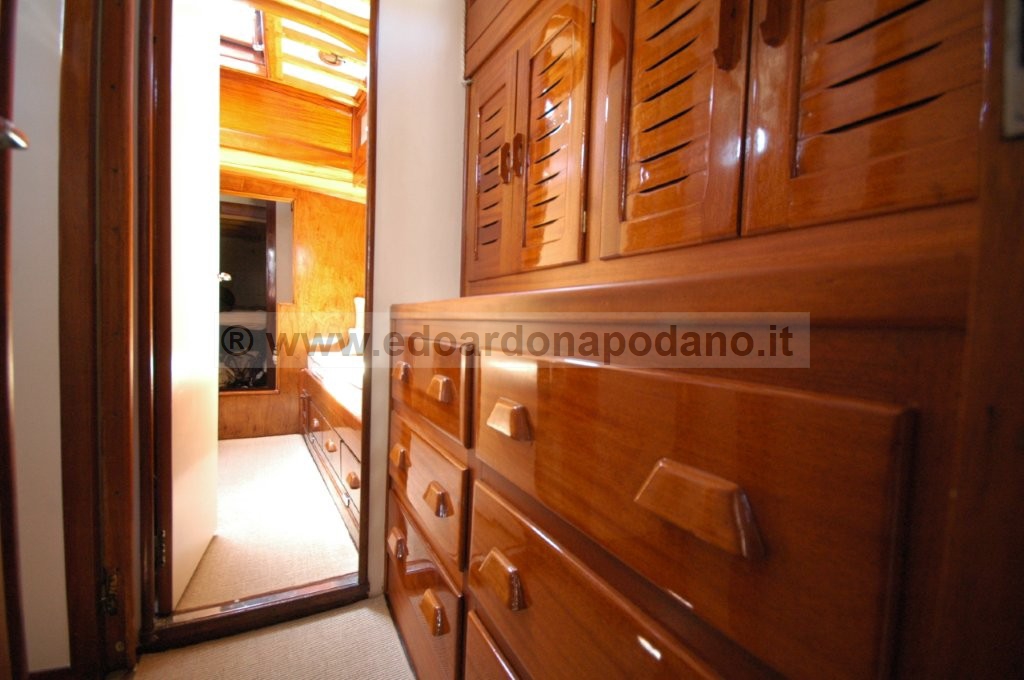

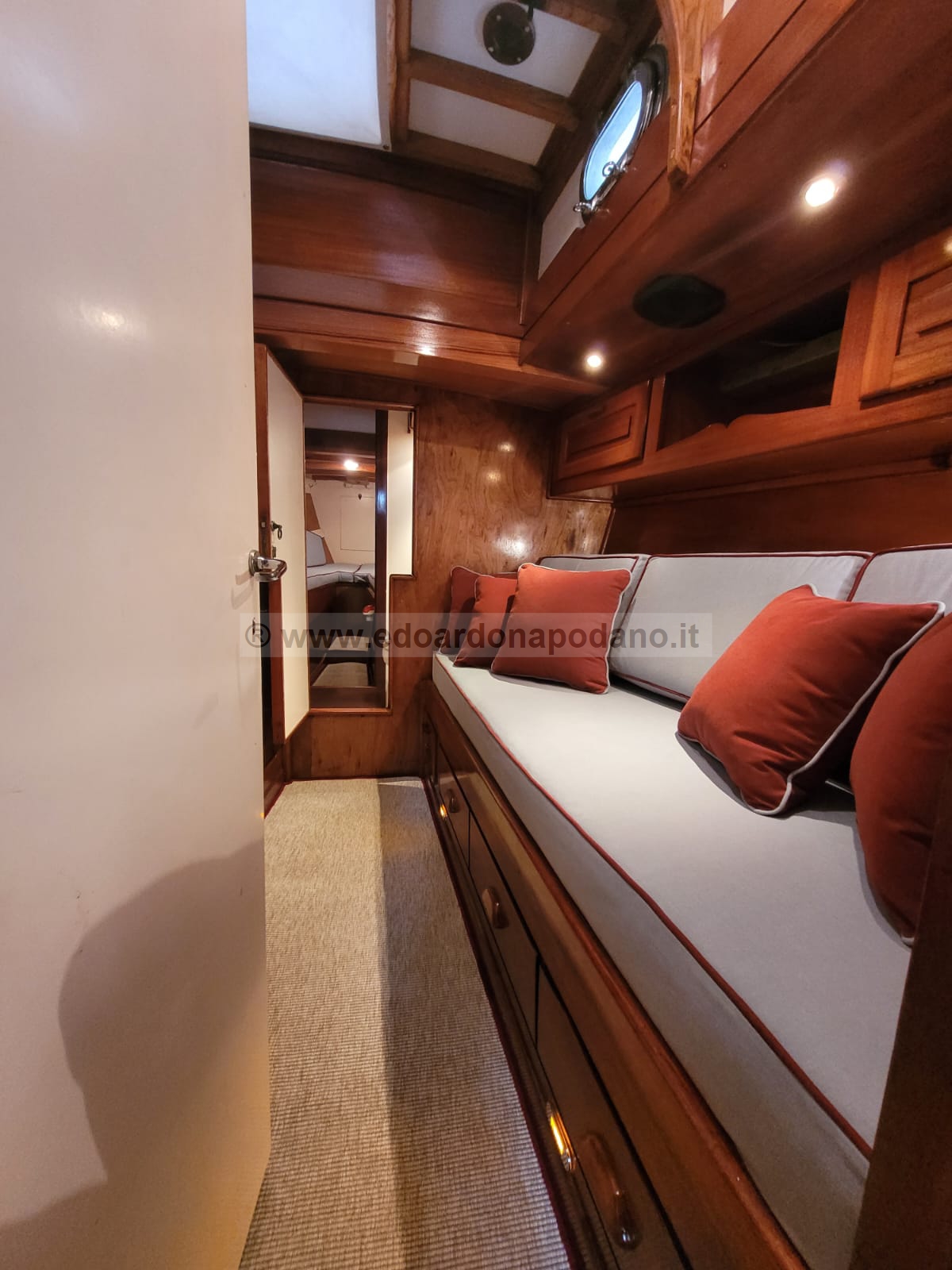

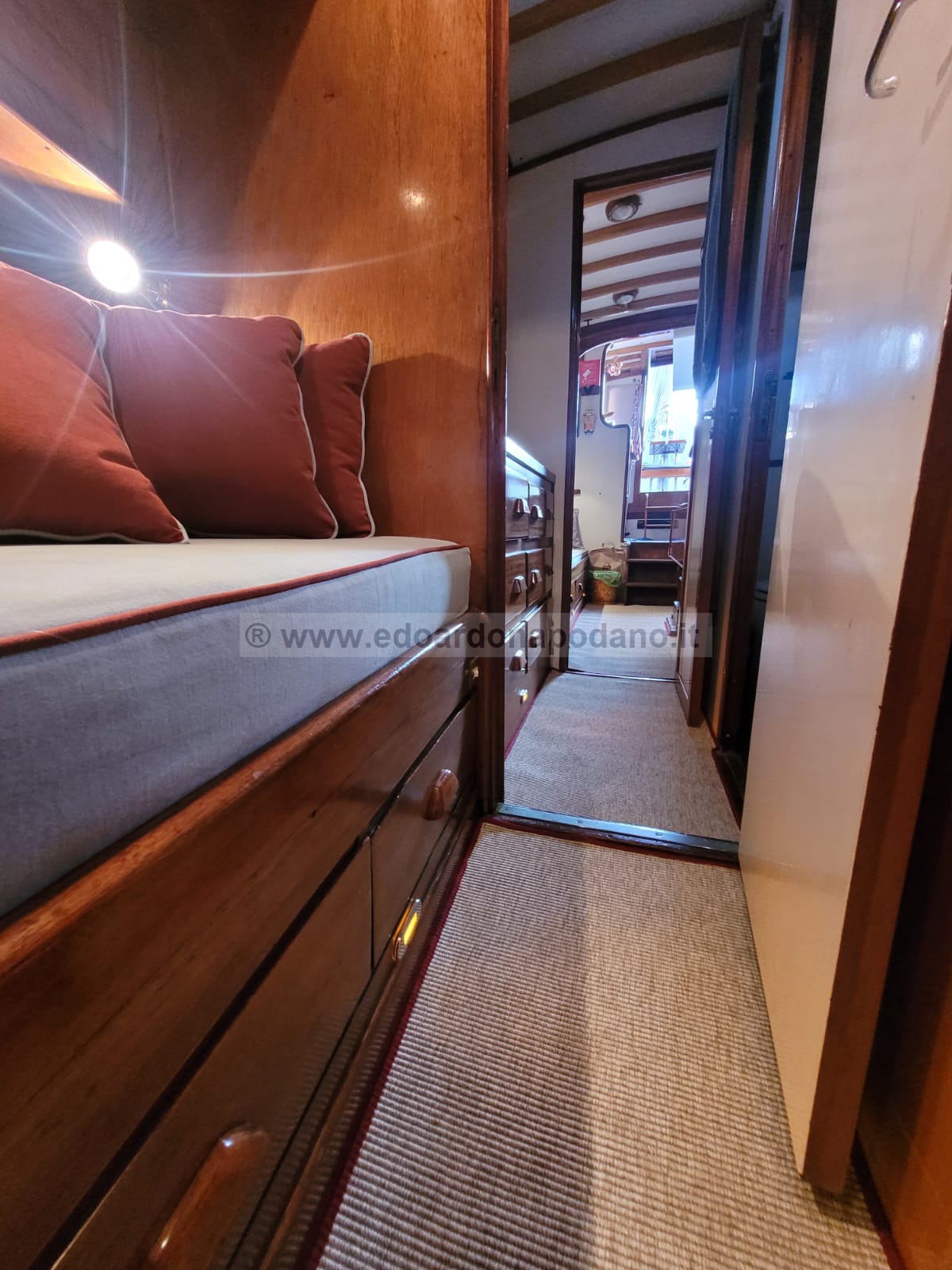

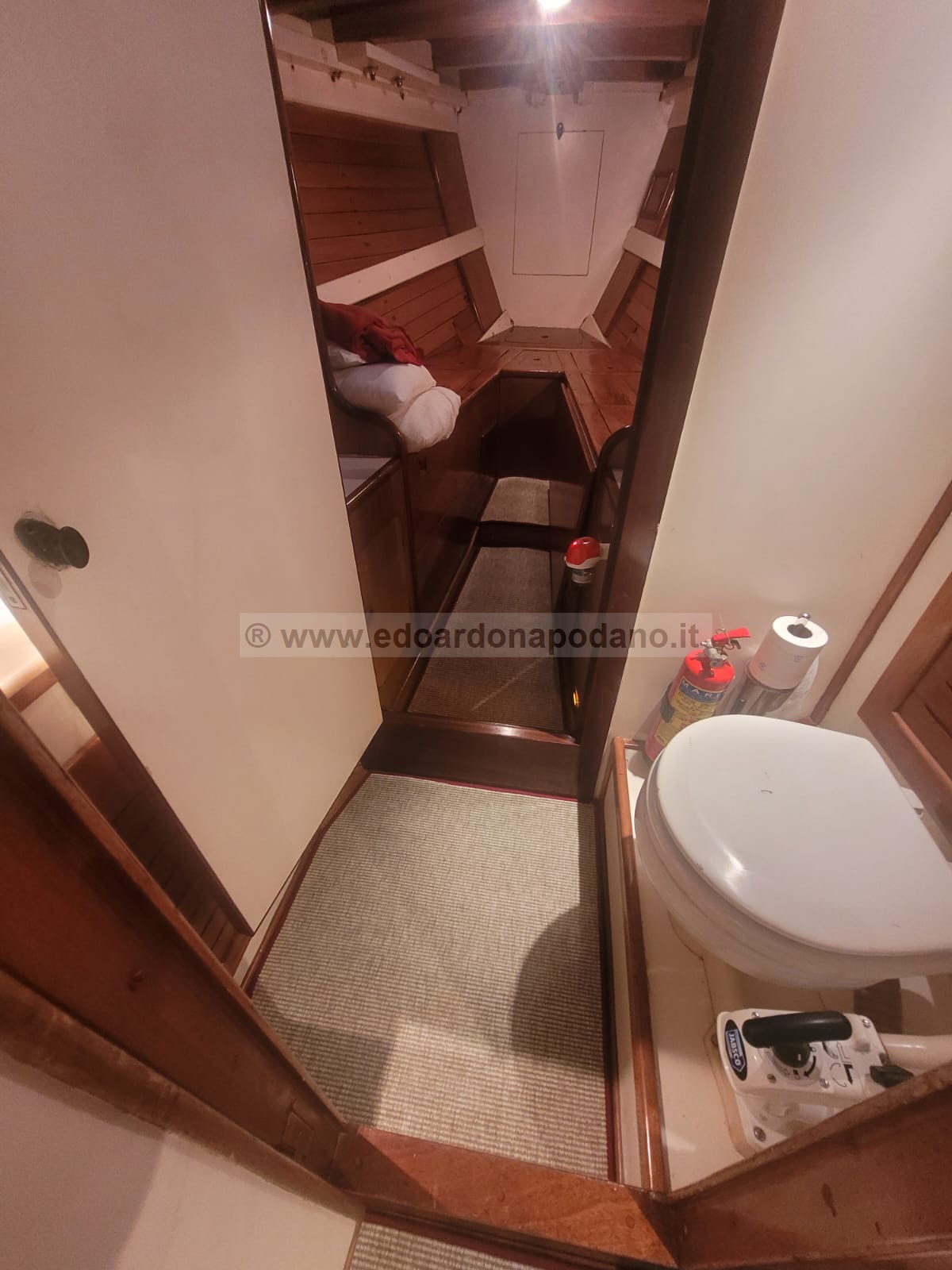

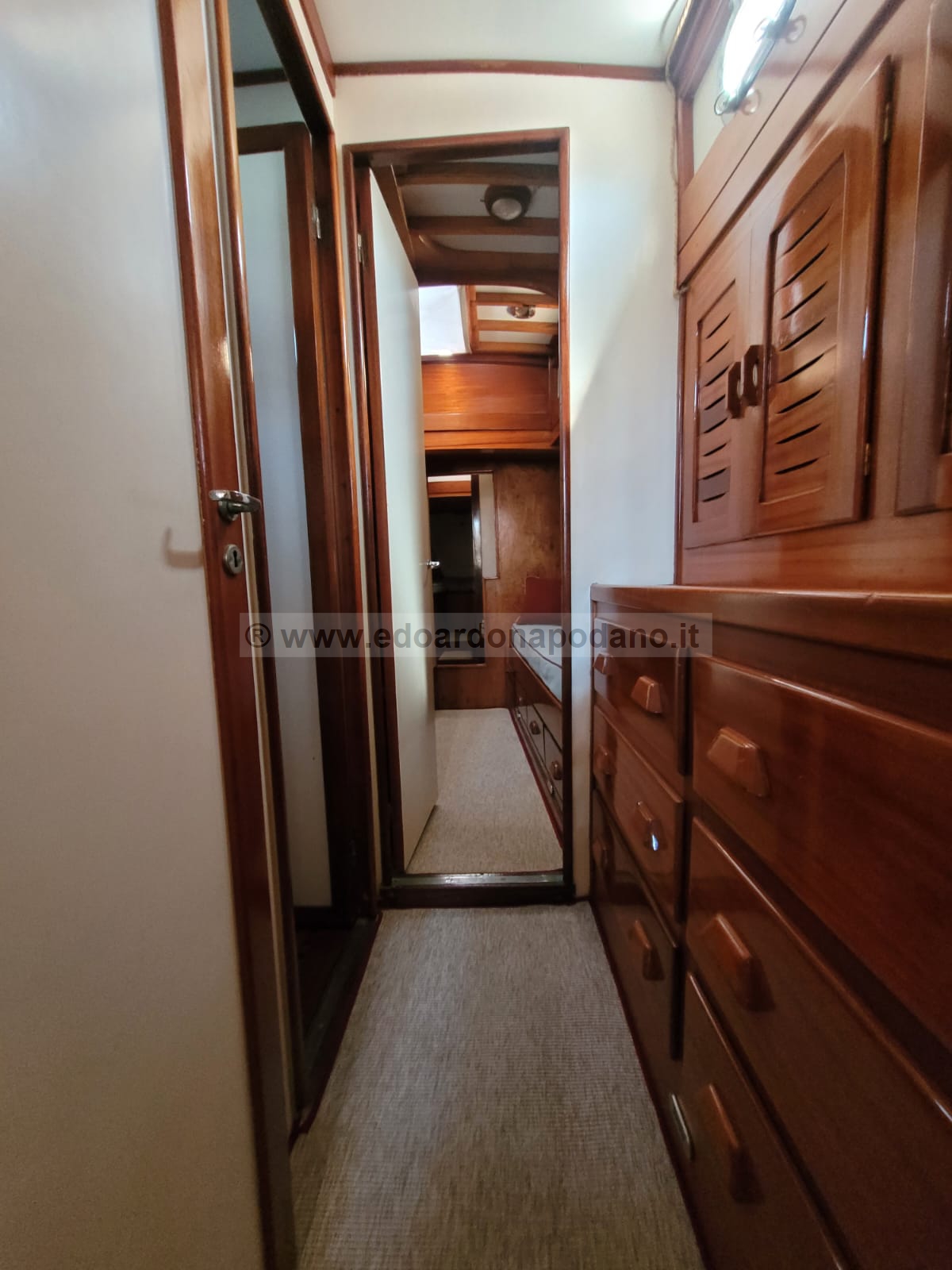

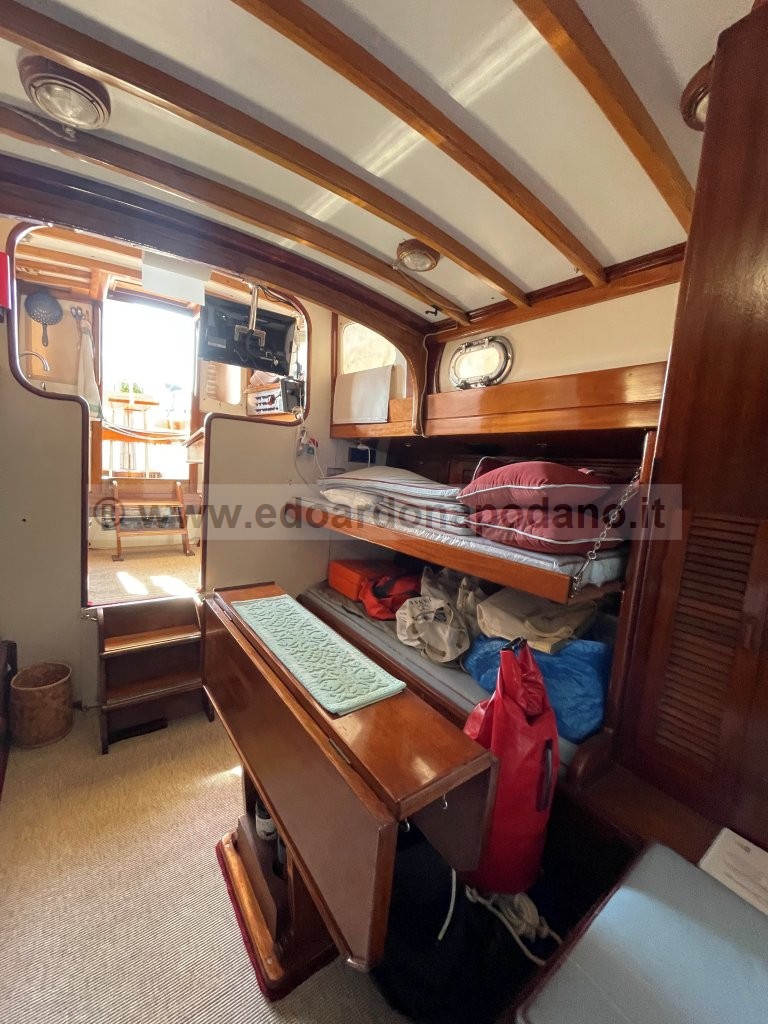

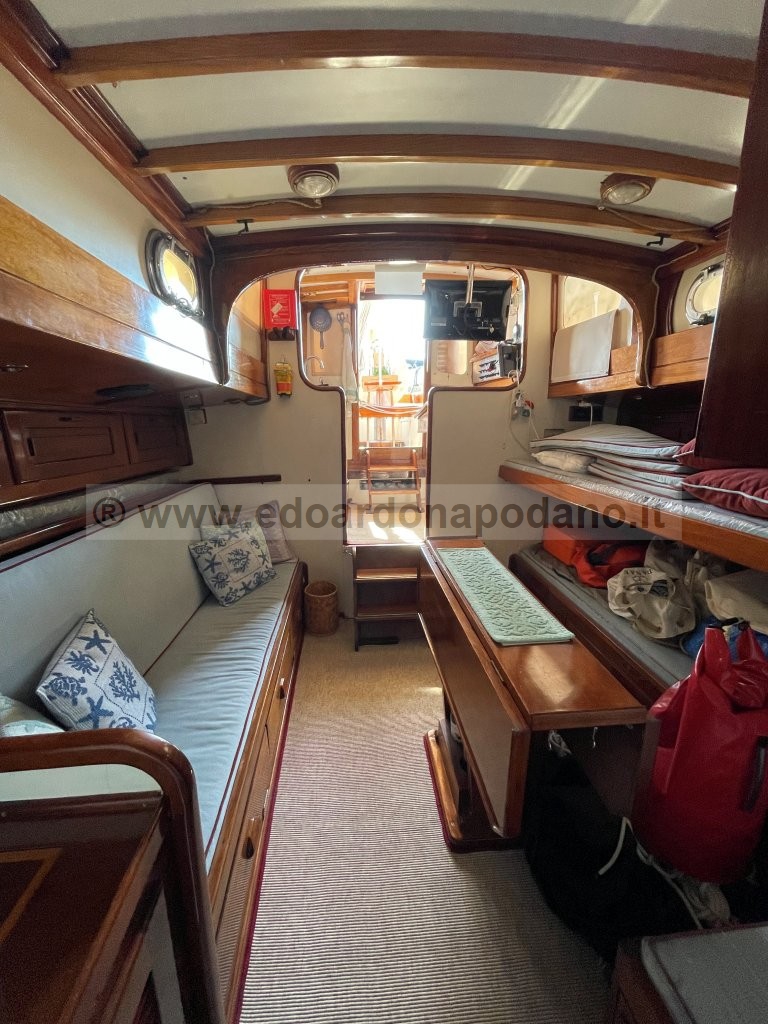

Accommodations
1 Owner cabin double berth
1 Guests cabin 1 French double berth
Crew 2 berths

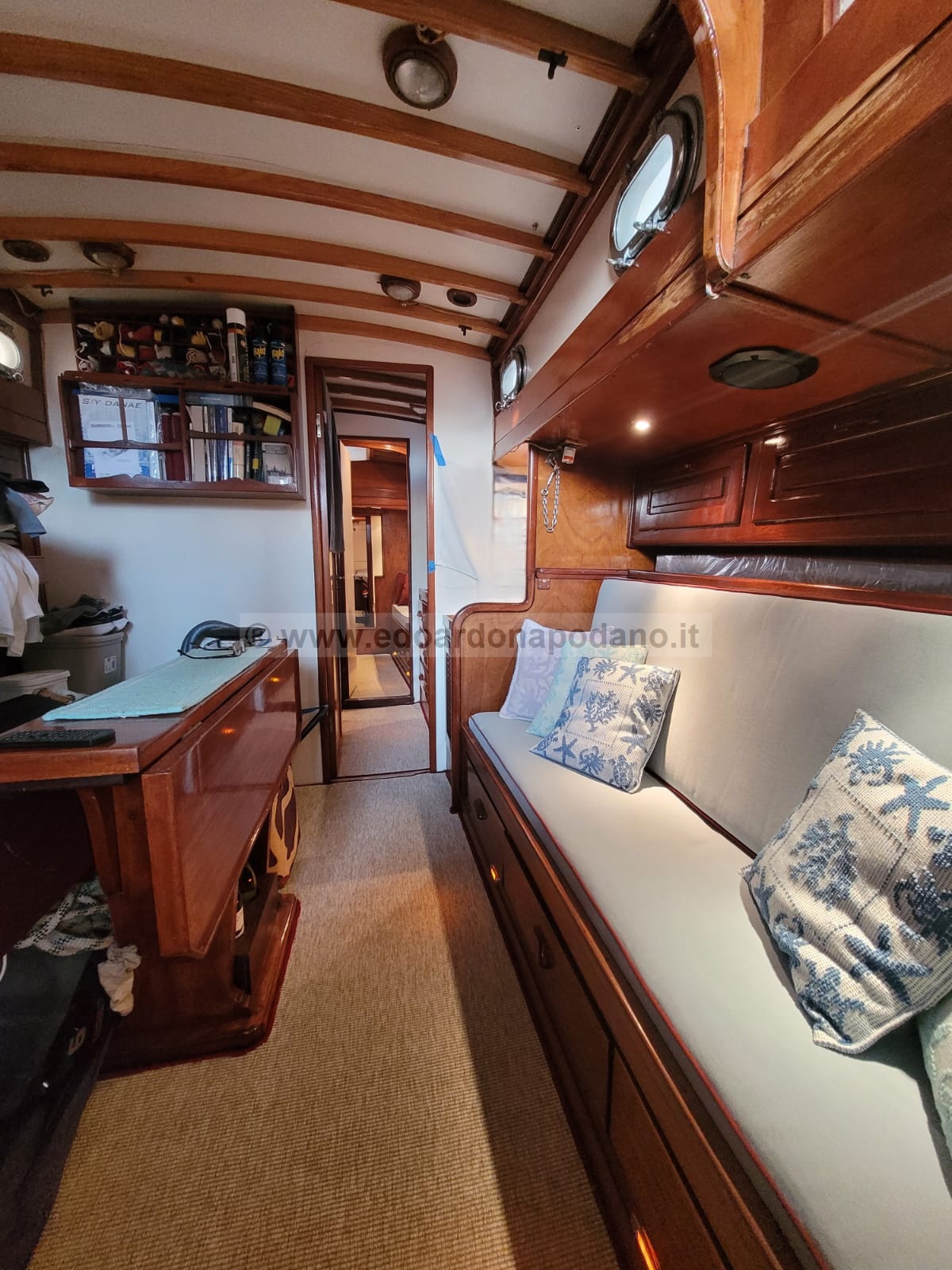

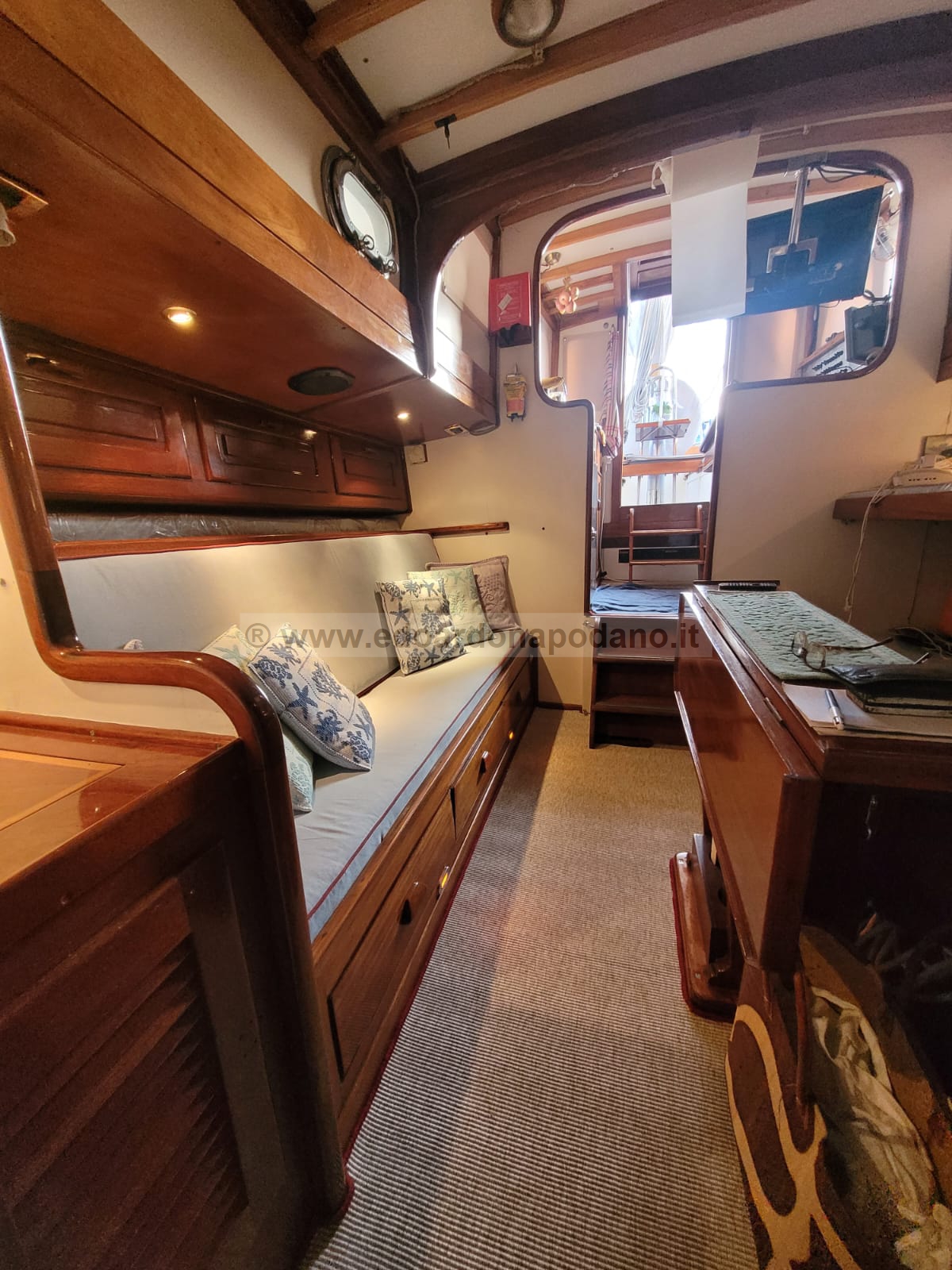

Saloon 4 berths

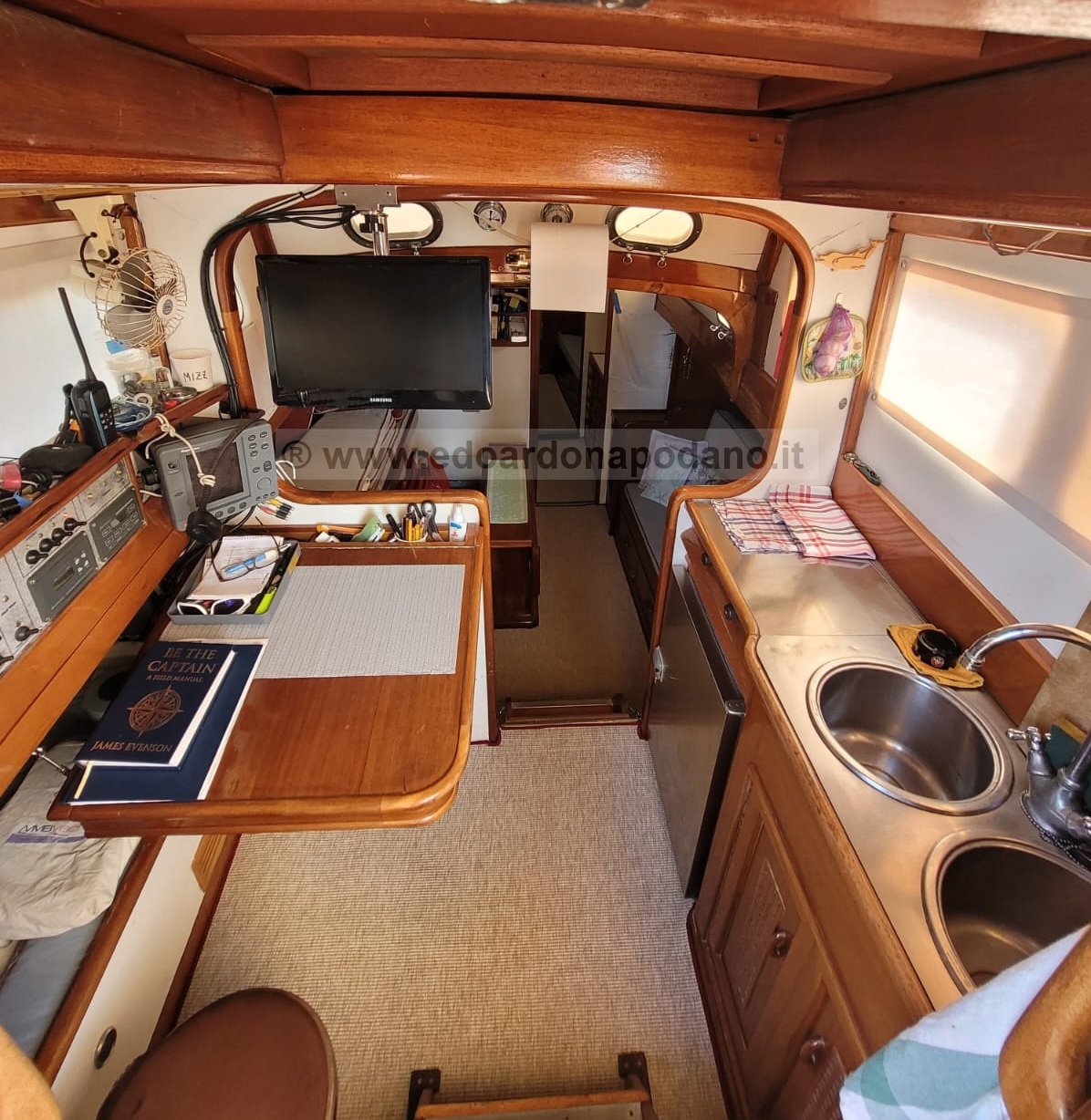

Galley

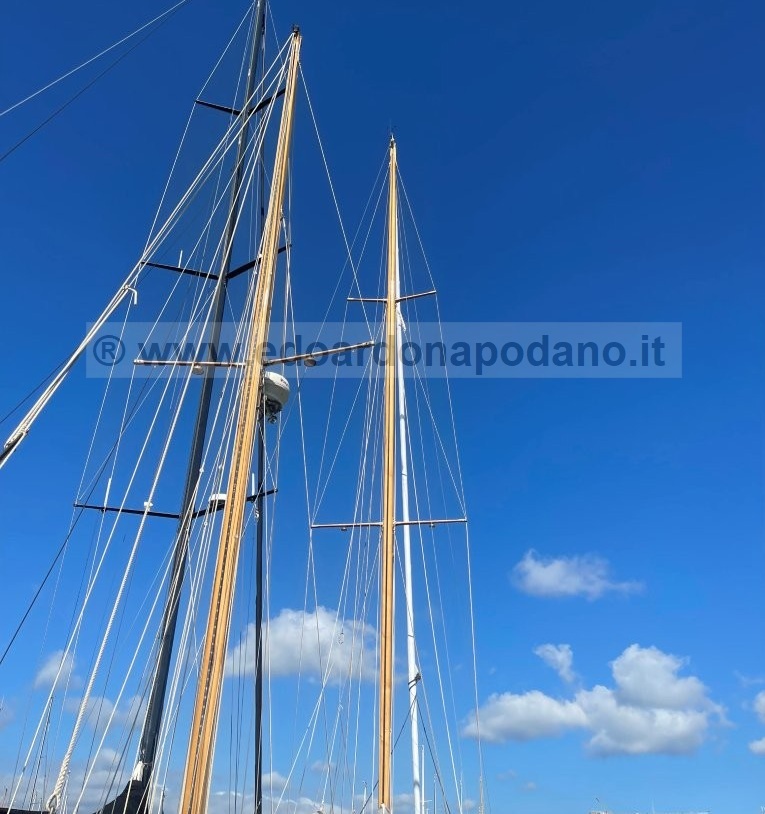

Masts Spruce (hollow)
Booms Spruce
Reefing systems 2 full reefs on both main and mizzen
Fuel tank 400 lt
Fresh water tank 500 lt
Waste water tank 80 lt
Total consumption (incl.generator at cruising speed) 7-8 lt/hrs
Range (at cruising speed) 400 nM (average 55 hrs@full steam)
GPS/plotter Yes
Radar Yes
Weatherfax Yes
Barograph Yes
Log Yes
Wind speed + direction Yes
Extras Full Set of Electronic Charts for the World
Communication
e-mail connection Yes
VHF radio telephone Yes
Satcom No
Telephone and fax Yes
Cellular telephone Yes
EPIRB Yes
Entertainment
TV/DVD Yes (Dolby Surround)
Radio/HiFi Yes
Sails North Sails
Regatta sails 2 Half Battened Main & Mizzen

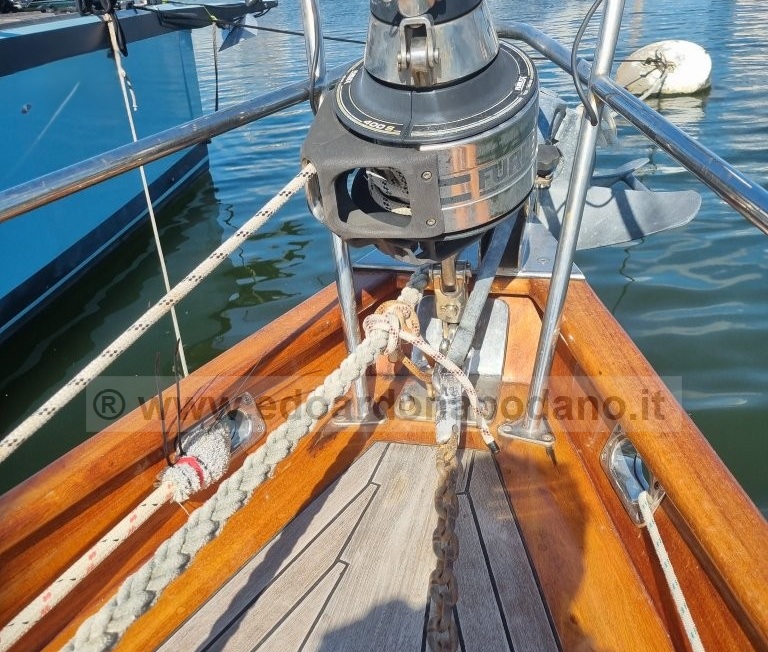

Genoa (furling system – Furlex)
Yankee
Staysail
Storm-Jib

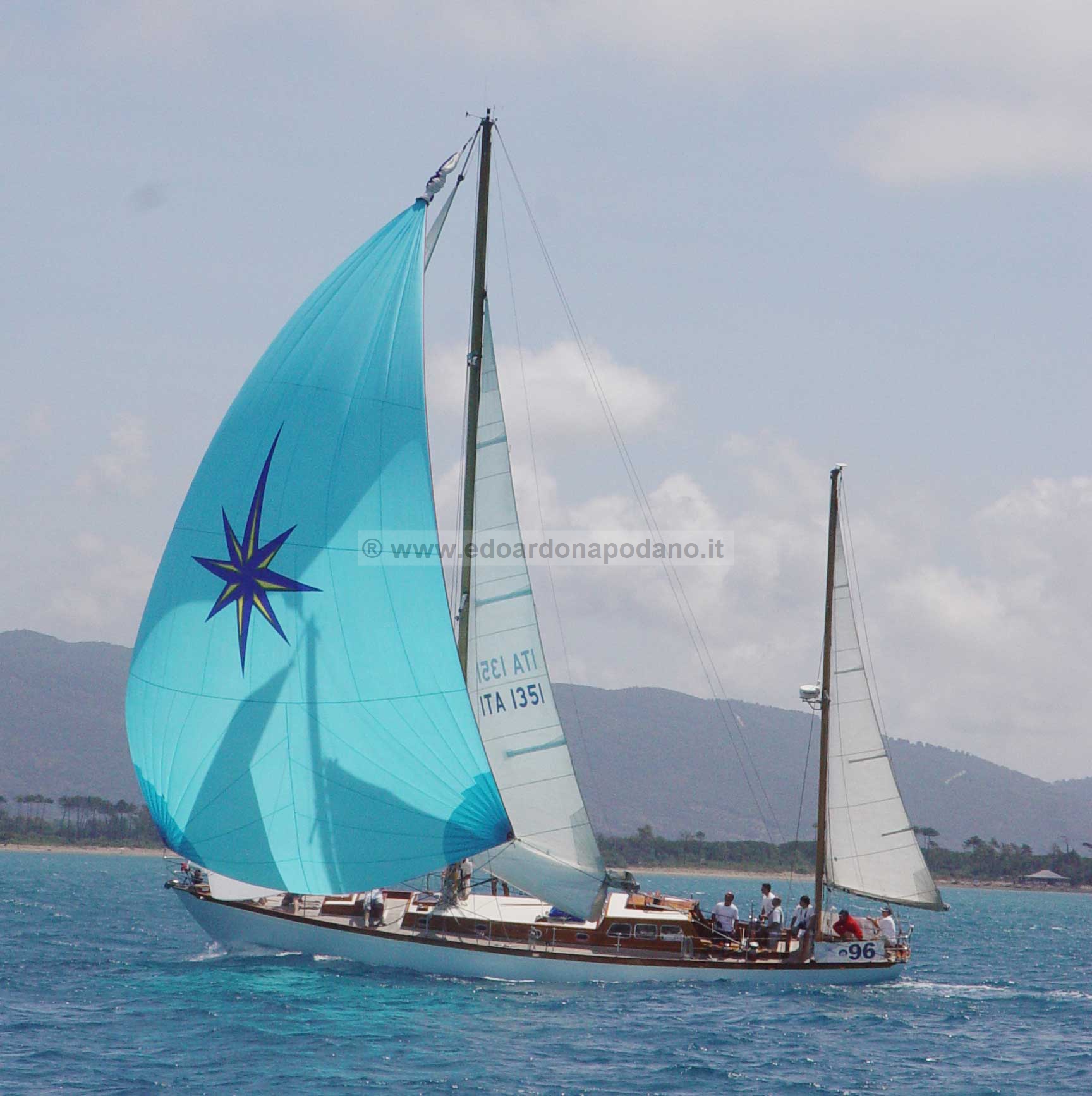

Gennaker (sock)
Mizzen staysail
Sail area 200 sq.mt.

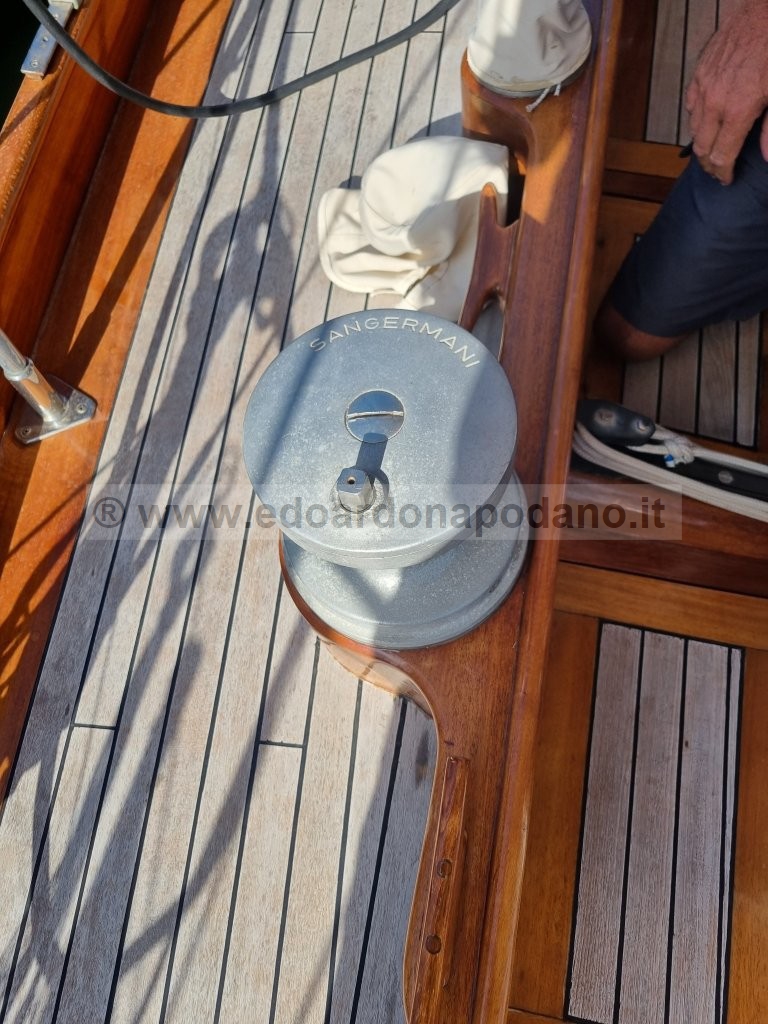

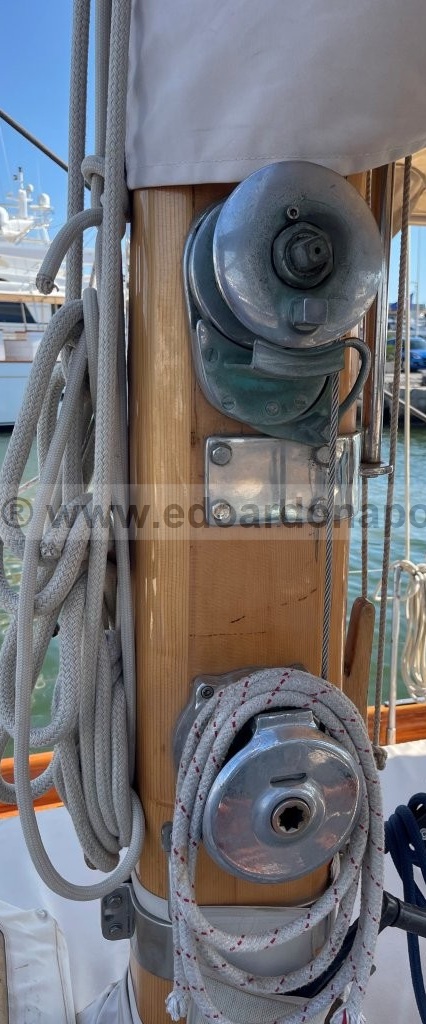

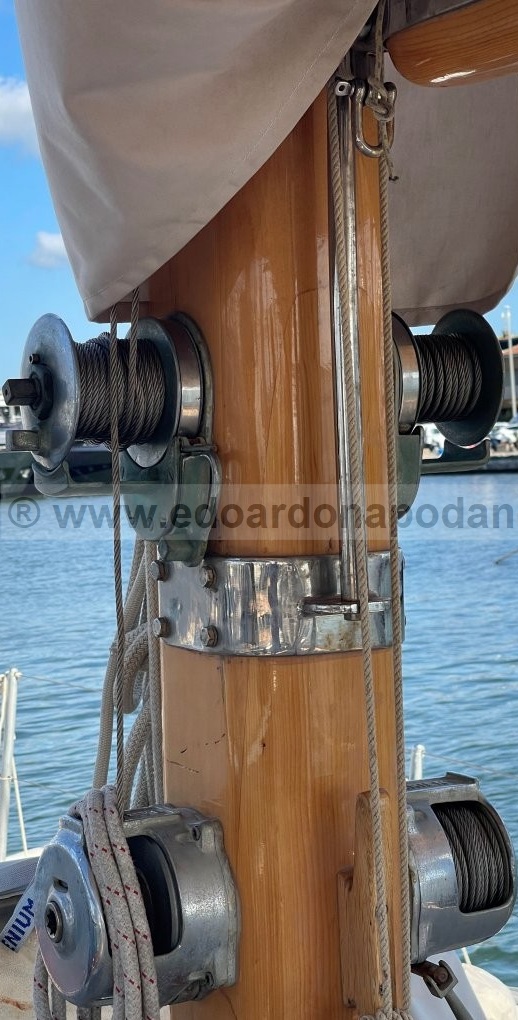

Winches 8
Alternator 115 A/h
Auxiliary equipment
Water maker Yes (60 l/hrs@12V)
Refrigerator
Deep freezer (-28°)
Bottle cooler
Stove Yes
Boiler Yes (45 lt)

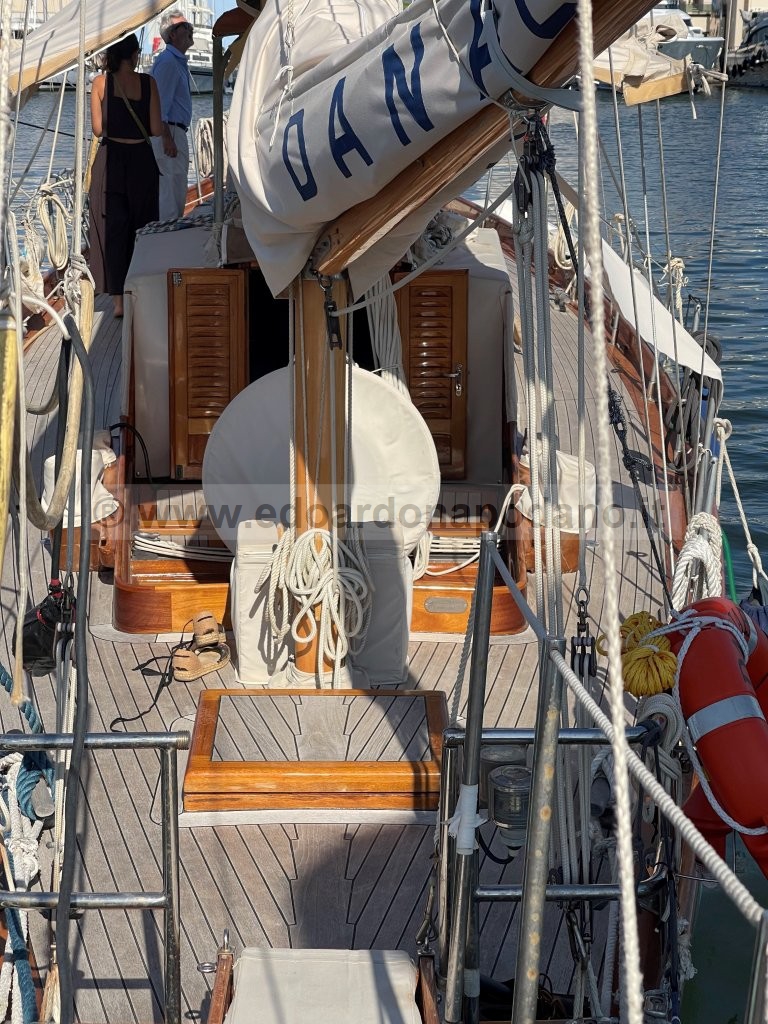

Deck equipment
Gangway
Bathing platform
Bathing ladder
Deck shower
Awning
Bimini top
Sun mattresses
Anchor

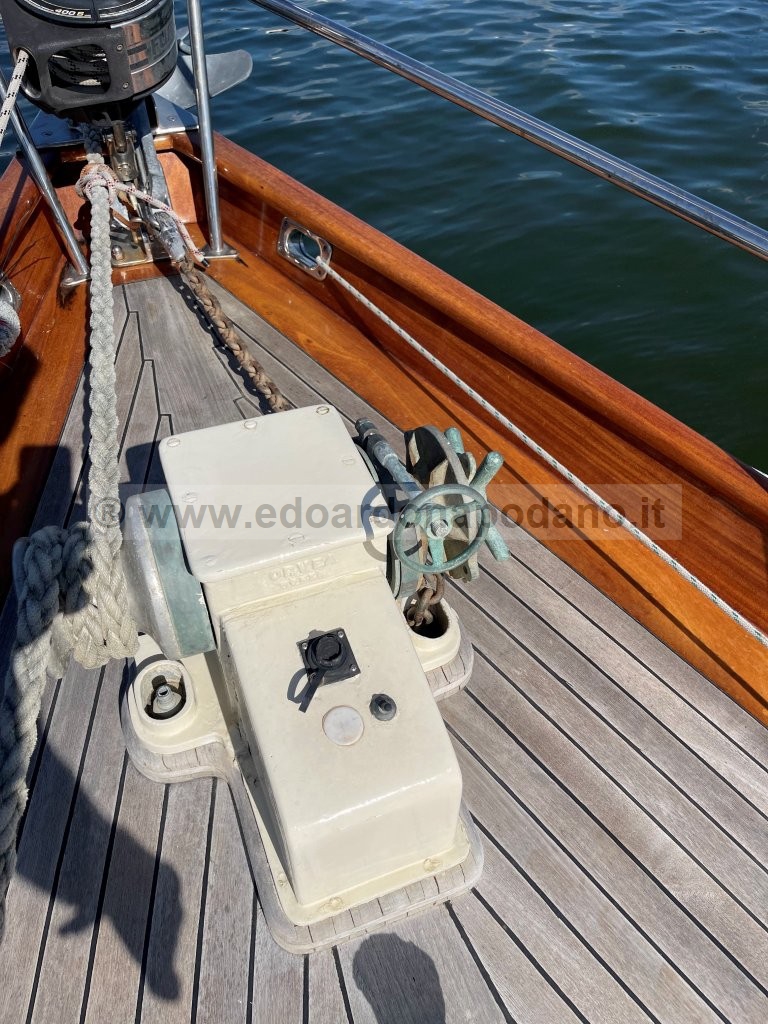

Windlass
Tender and water toys
Tender 3 mt, rigid bottom, 4 people
Outboard 6 Hp Suzuky, 4 stroke
Diving gear
Safety
Life raft (8 people)
Life jackets
Bilge alarm (2 emergency electric Bilge Pumps up to over 120 lt/min capacity)
Fire-extinguishing system (with fire-alarm)
Fire-extinguishers

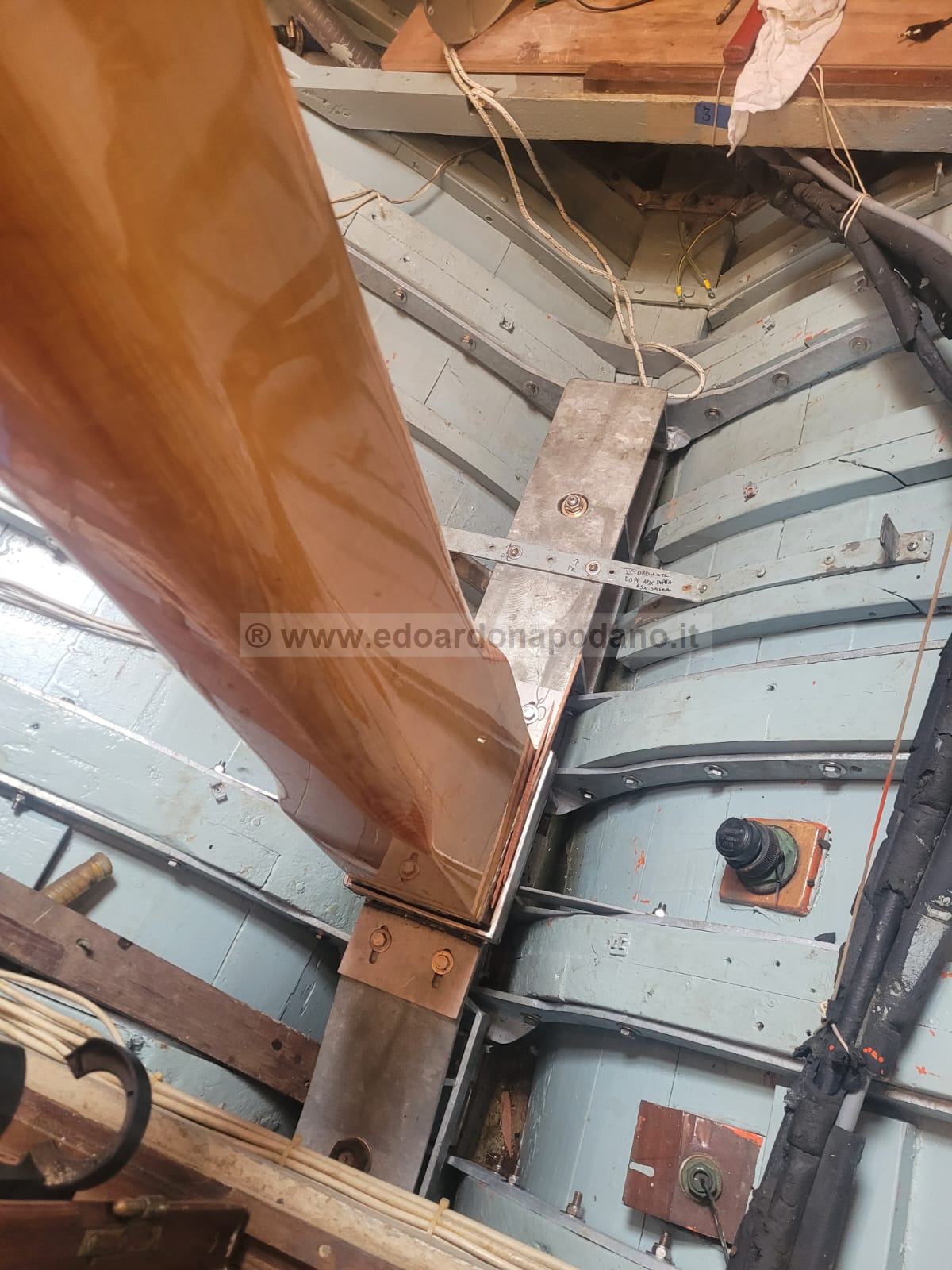

Yacht’s Integral Refit 2025-2026 includes:
All Systems (Electrics, Electronics, Pumps, Airco, El wc, etc… )

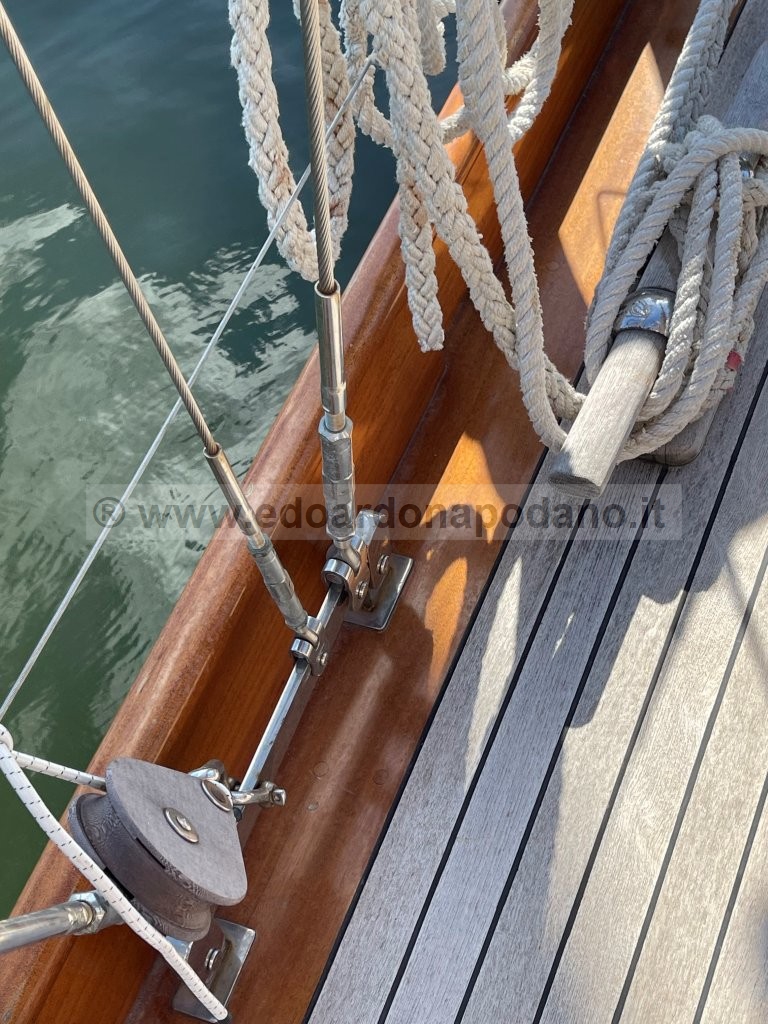

Rig, Shrouds, Halyards, Lifelines, Stanchions, Pulpits (full set of spare sheets, guys and halyards provided)
Lazy Jacks + Lazy Bags
Complete set of tents & winter covering canvas (total boat’s protection for wintering)
Spares: Engine’s & Generator’s parts, belts, filters
2 spare Anchors
Various blocks, pulleys, short sheets and fittings
Full set of tools and hardware
Crew Uniforms
Professional Safety & First Aid Equipment
Bible description of Refit, work registry and equipment including all warranties
The Yacht shows under stunning and immaculate conditions, professionally maintained contin-uously since the re-launch in June 2023
A Registered Survey Filed by a Notified Certification Body, i.e. full financial expertise and assessment of the state of the yacht, is available.
*
Studio formato da John Illingworth e Angus Primrose fondato nel 1958.
Nel 1958 John Illingworth apre un studio di architettura navale, in collaborazione con il giovane architetto Angus Primrose e subito inizia un buon flusso di ordini, in particolare dalla Francia. Nel mettere a sistema il processo avviato con Laurent Giles in MYTH OF MALHAM , John Illingworth si specializza nella progettazione generale e nella progettazione dell’armamento delle barche da regata, sfruttando tutti i benefici in grado di aggirare le regole di stazza, ottimizzando le principali misure della barca per ottene un rating favorevole (dimensioni, punti definiti dalle formule,ecc), mentre Angus Primrose disegna le carene. Lo studio e l’ottimizzazione delle regole del RORC porterà alla progettazione di yacht progettati “su misura”.
La collaborazione tra Illingworth & Primrose durò 8 anni (dal 1958 al 1966) .
